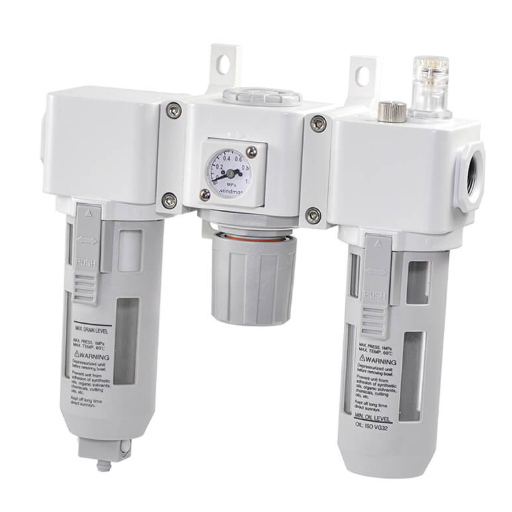

Components:MAF302, MAR302, MAL302, Port size: 1/4, 3/8, 1/2, Operating pressure range: 0.05~1 MPa, Proof pressure: 1.5 MPa.
| Components | MAF302, MAR302, MAL302 |
|---|---|
| Bore No. | 8A, 10A, 15A |
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range (※) | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Effective orifice | 8A:32mm2 、 10A,15A: 34mm2 |
| Ambient temperature | －5~＋60℃ (no freezing) |
| Filter element | Standard: 5μm Option: 40μm |
| Lubricating oil capacity | 65c.c |
| Min. flow for oil drip | 8A: 50 l/min 、 10A, 15A: 60 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Attachment | Pressure gauge(PG-20), T-type bracket |
| Weight | 1115 g |
| Remark | ※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa. |
