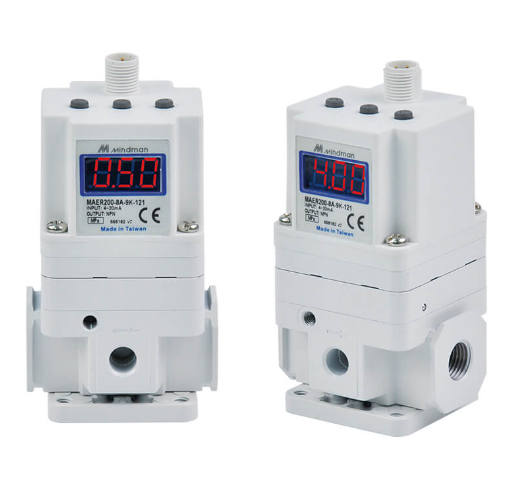

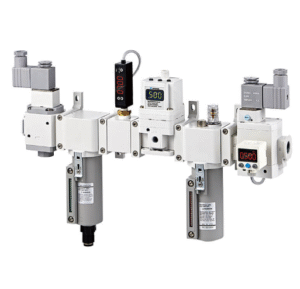

Port size: 1/4, 3/8, Medium: Air, Max. supply pressure: 0.2~1 MPa, Enclosure: Equivalent to IP65.
| Pressure range | 1K, 5K, 9K |
|---|---|
| Bore No. | 8A, 10A |
| Port size | 1/4, 3/8 |
| Medium | Air |
| Proof pressure | 1K: 0.3 MPa 5K, 9K: 1.5 MPa |
| Ambient temperature | +5~+50°C (No condensation) |
| Min. supply pressure | Set pressure+0.1 MPa |
| Max. supply pressure | 1 MPa |
| Setting pressure range | 0.005~0.9 MPa |
| Power supply | Connector: M12 plug, 4-pin, A-coded Voltage: DC24V±10% Current: DC24V: 80mA or less |
| Signal input | Current type: DC4~20 mA Voltage type: DC0~5V, DC0~10V Preset input: 4 points |
| Input impedance | Current type: ≤ 400Ω Voltage type: Approx. ≤ 50kΩ Preset type: Approx. ≤ 1000kΩ |
| Signal output (Monitor output) |
Analog output: Current type DC4~20mA (Load impedance 1kΩ or less) Analog output: Voltage type DC1~5V (Load impedance 750Ω or above) Switch output: NPN, PNP: Max. 24V, 160mA |
| Linearity | 1K: Within ±2% (F.S.) 5K, 9K: Within ±1% (F.S.) |
| Hysteresis | Within 1% (F.S.) |
| Repeatability | Within ±1% (F.S.) |
| Sensitivity | Within 0.4% (F.S.) |
| Temperature characteristics | Within ±0.2% (F.S.)/°C |
| Output pressure display | Precision: ±2% F.S. ±1 digit Min. unit: MPa:0.001, kgf/cm2:0.01, bar:0.01, psi:0.1, kPa:1 |
| Enclosure | Equivalent to IP65 |
| Weight | Main: 360 g; Bracket: Approx. 86g(B1) , 80g(B2); Cable connector: Approx. 55g(1m) , 130g(3m) |
