Product Description
BRTIRSC0603A
BRTIRSC0603A type robot is a four-axis robot that devel oped by BORUNTE for some monotonous, frequent and repetitive long-term operations.The maximum arm length is 600mm. The maximum load is 3kg.It’s flexible with multiple
degrees of freedom. Suitable for printing and packaging, metal processing, textile homefurnishing, electronic equipment, and other fields. The protection grade reaches IP40.
The repeat positioning accuracy is ±0.02mm.
degrees of freedom. Suitable for printing and packaging, metal processing, textile homefurnishing, electronic equipment, and other fields. The protection grade reaches IP40.
The repeat positioning accuracy is ±0.02mm.
● The structure of servo motor with RV reducer and harmonic reducer, which has small volume, large working range, fast speed and
high precision, and can be integrated with turntable, slide conveyor chain system and other auxiliary equipment. ● The handheld
dialogue operator of the control system is simple and easy to learn, which is very suitable for production.
● The robot body adopts partial internal wiring, which is safe and environmentally friendly

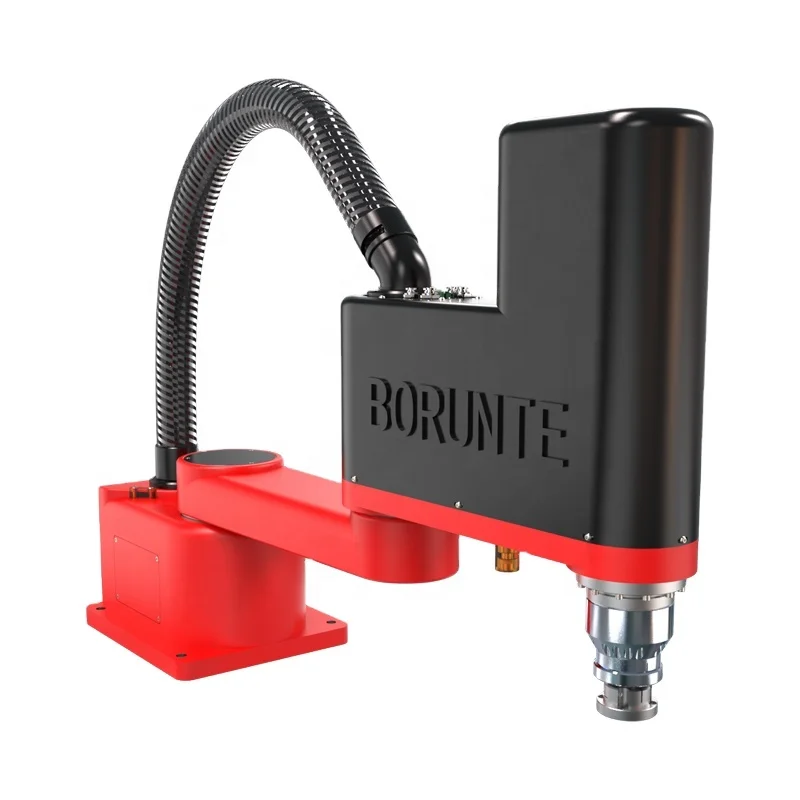

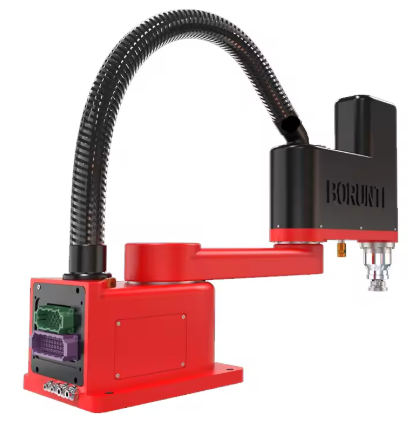

BRTIRSC0603A robot arm

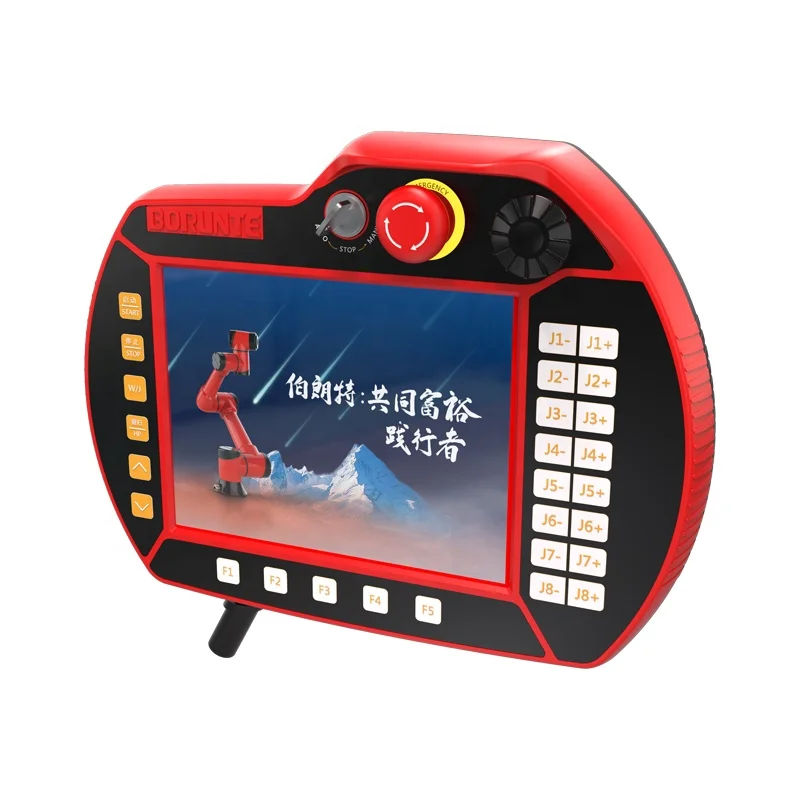

FlexPendant

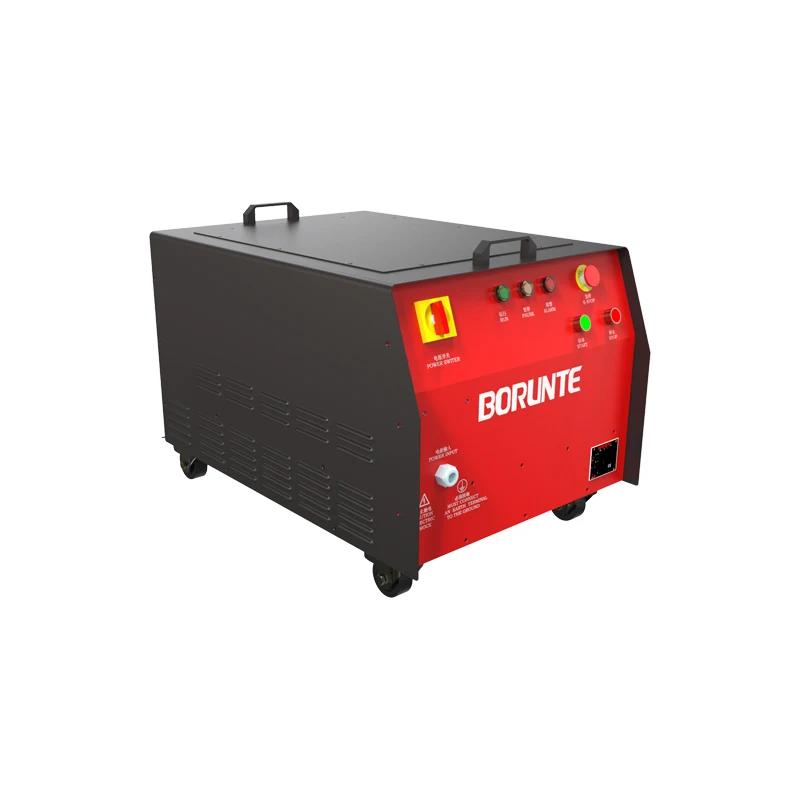

Electric Cabinet

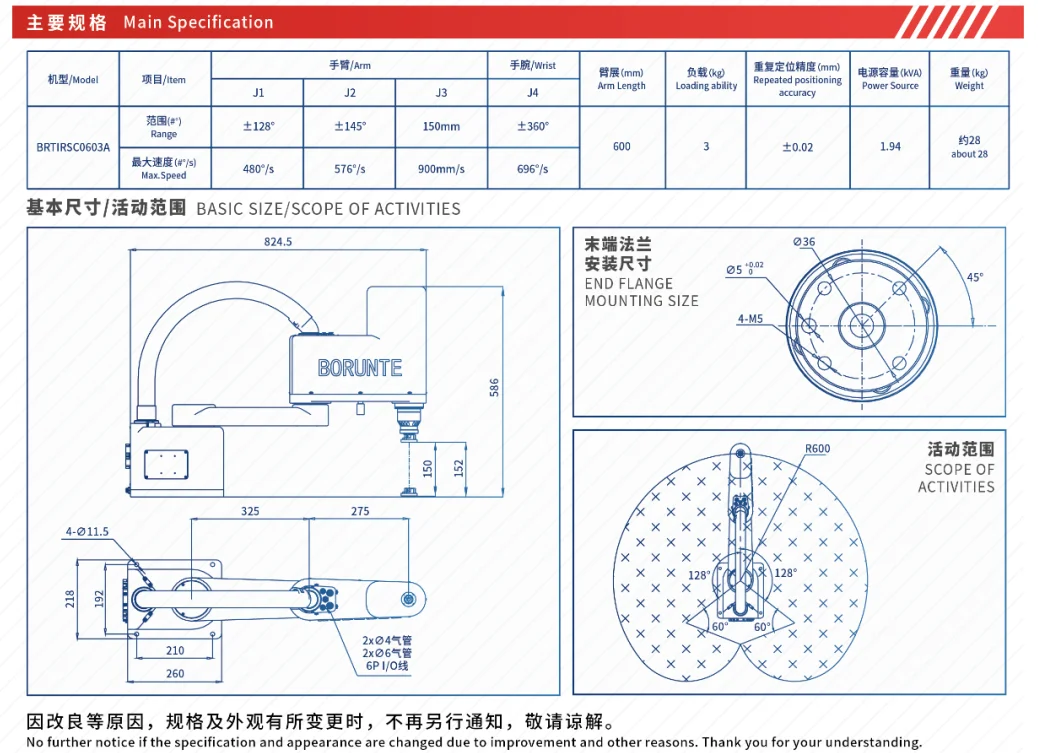

Product Specifications
|
Model
|
BRTIRSC0603A
|
|||||
|
Axes
|
4 axis
|
|||||
|
Loading ability
|
10kg
|
|||||
|
IP code
|
IP40
|
|||||
|
Repeated positioning accuracy
|
±0.05mm
|
|||||
|
Maximum arm span
|
600mm
|
|||||
|
Weight
|
73kg
|
|||||
|
Max speed
|
J1
|
300°/s
|
J2
|
473.5°/s
|
||
|
J3
|
1134mm/s
|
J4
|
1875°/s
|
|||
|
Motion range
|
J1
|
±130°
|
J2
|
±140°
|
||
|
J3
|
180mm
|
J4
|
±360°
|
|||
|
Maximum rotational torque
|
J3
|
16.256N*m
|
J4
|
1.016N*m
|
||
|
Maximum moment of inertia
|
J3
|
0.0286kg*m2
|
J4
|
0.0001kg*m2
|
||
|
Mounting environment |
Operating temperature： 0℃~40℃ Best temperature：25℃~40℃
Humidity：20~80%R（Nocondensation）
|
Mpa
|
0.5~0.7MPa
|
|||
|
Power supply
|
220V±10％ 50Hz/60Hz
|
|||||
|
Core components
|
Name
|
Operating system
|
Brand
|
BORUNTE
|
||
|
Casting body
|
BORUNTE
|
|||||
|
Servo motor
|
BORUNTE
|
|||||
|
Reducer
|
BORUNTE
|
|||||
|
Electrical component
|
BORUNTE
|
|||||
|
Oil content
|
J1
|
700ML
|
J2
|
400ML
|
J3
|
/
|
|
Vulnerable parts
|
Timing belt
|
Tooth shape 5M, 108 teeth, 9mm wide
|
||||
|
Timing belt
|
Tooth shape 5M, 148 teeth, 9mm wide
|
|||||
|
Timing belt
|
Tooth shape 5M, 104 teeth, 15mm wide
|
|||||
|
Robot accompanying materials
|
USB
|
|||||
Applications

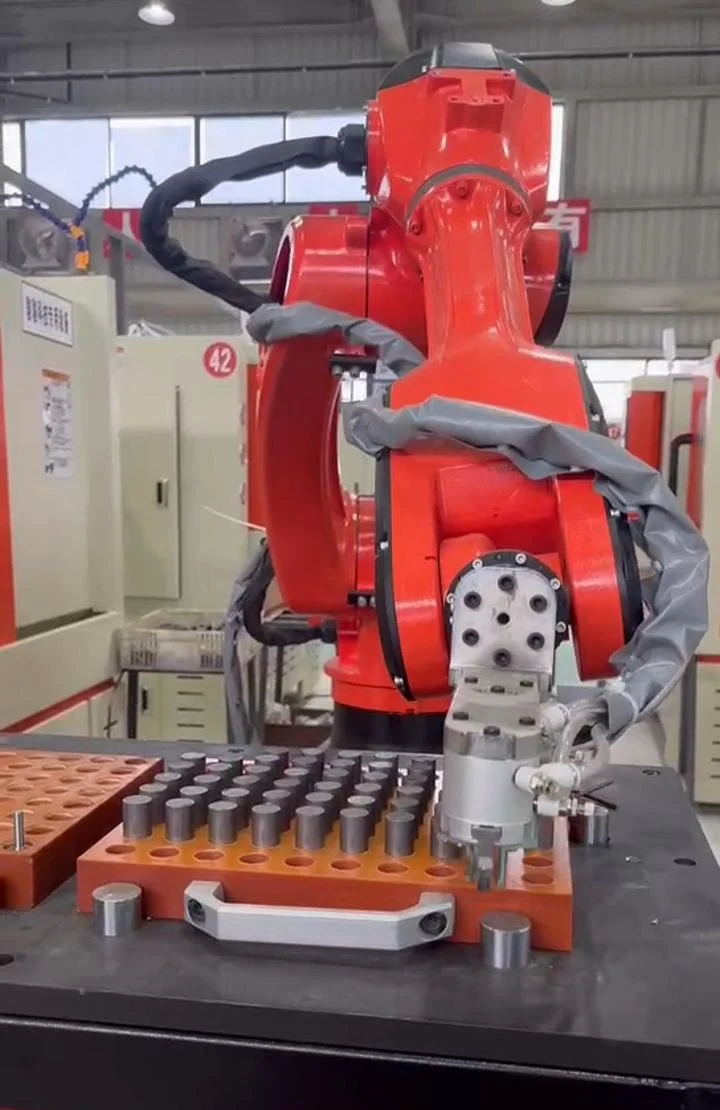

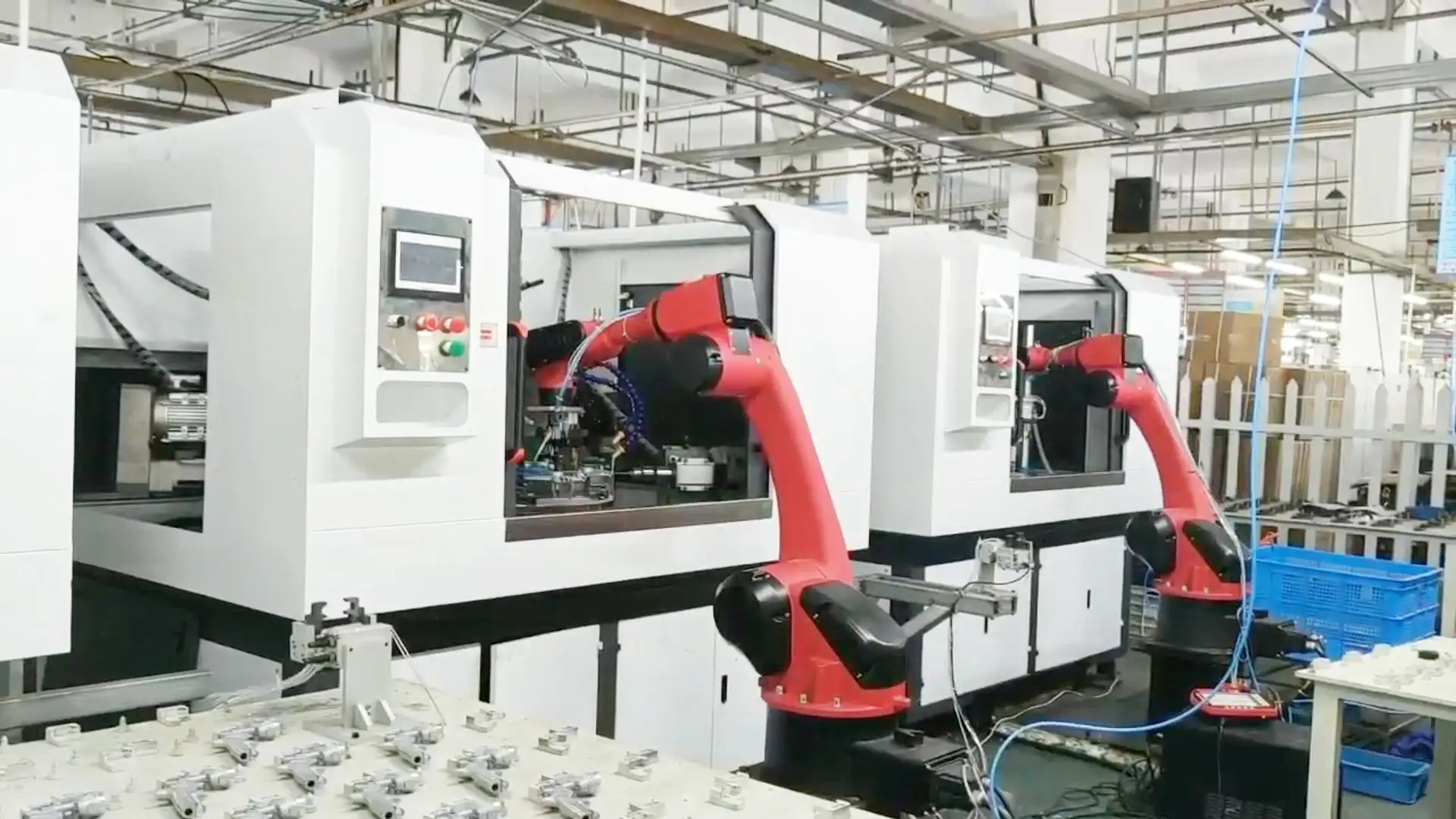

loading with CNC machine

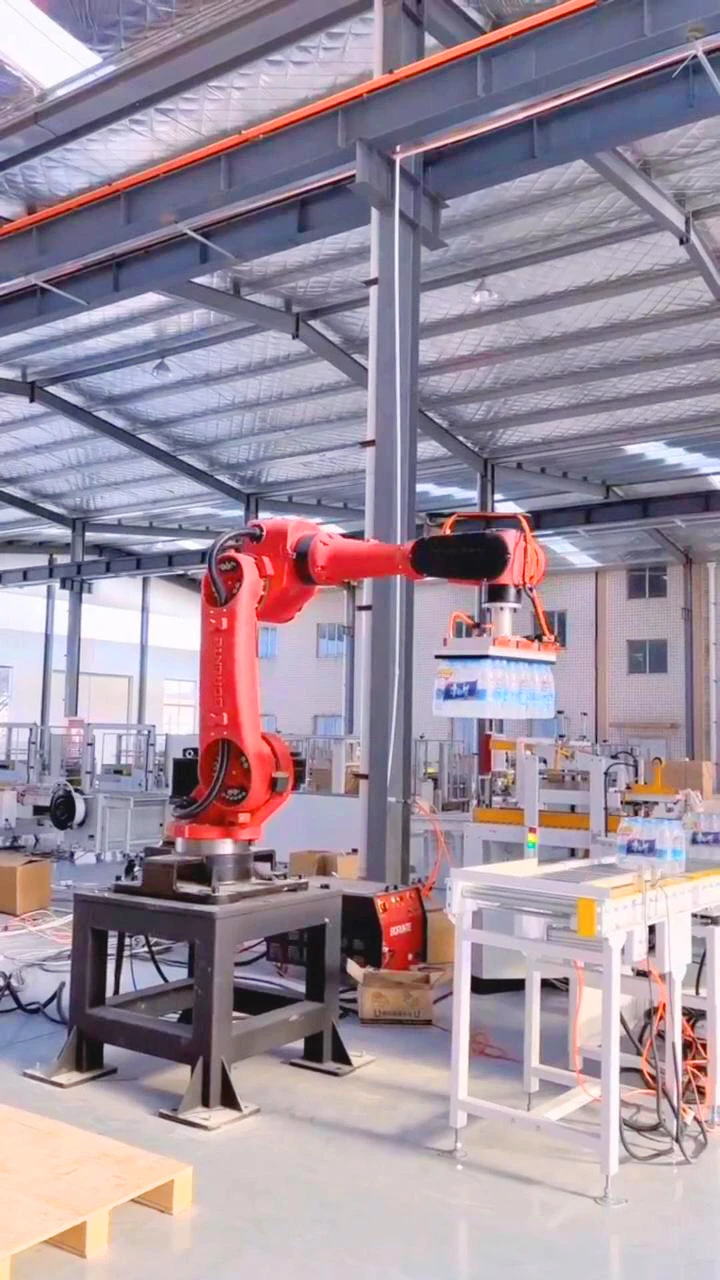

handing

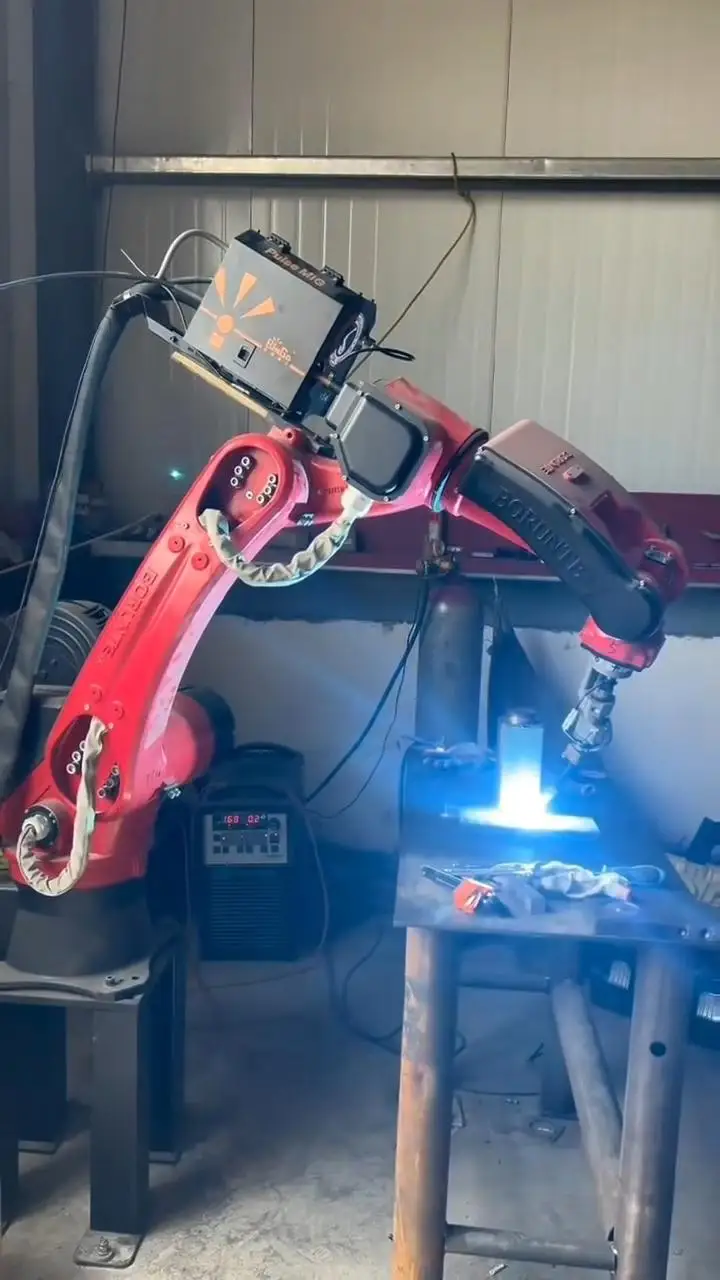

welding

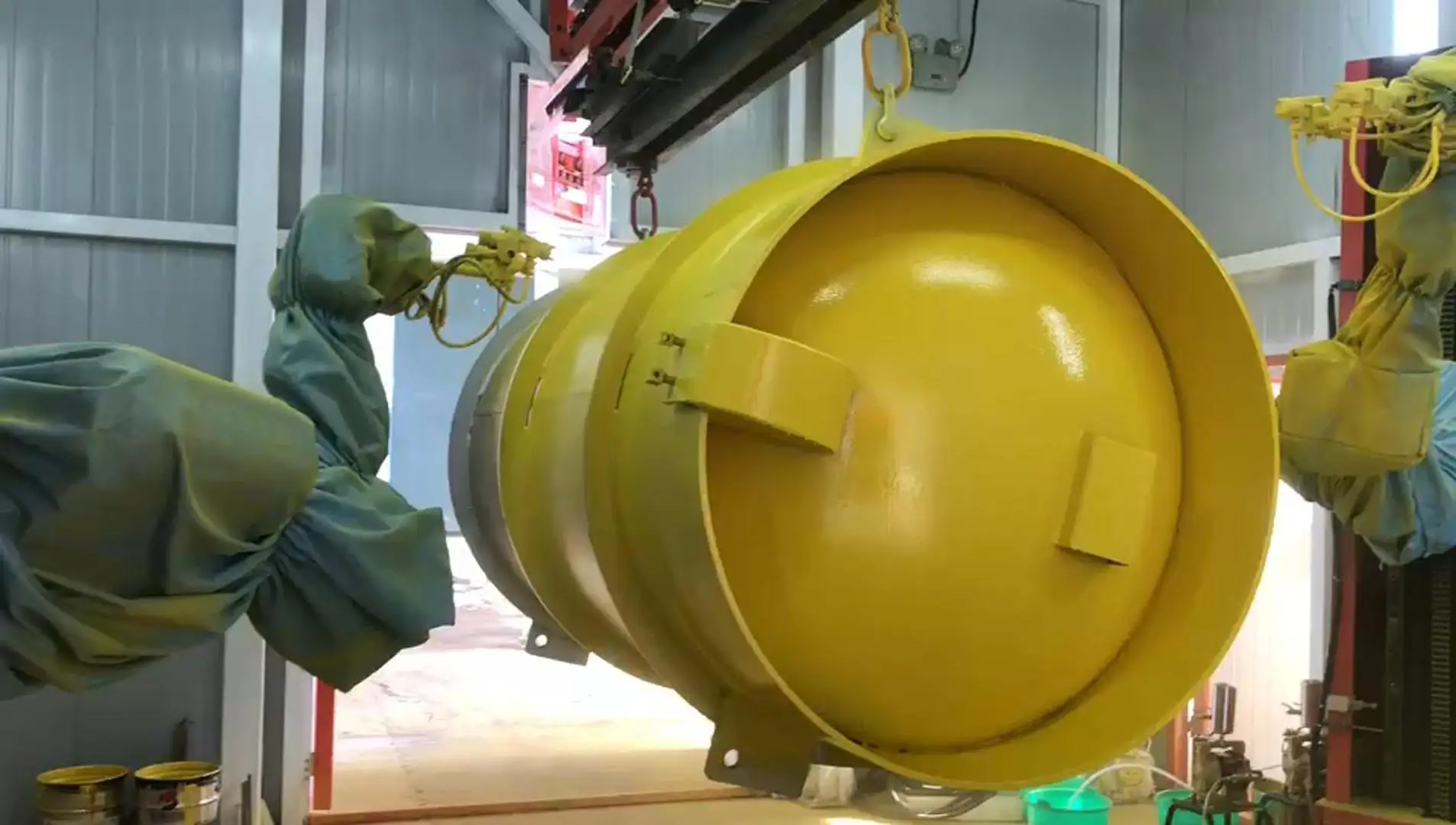

painting

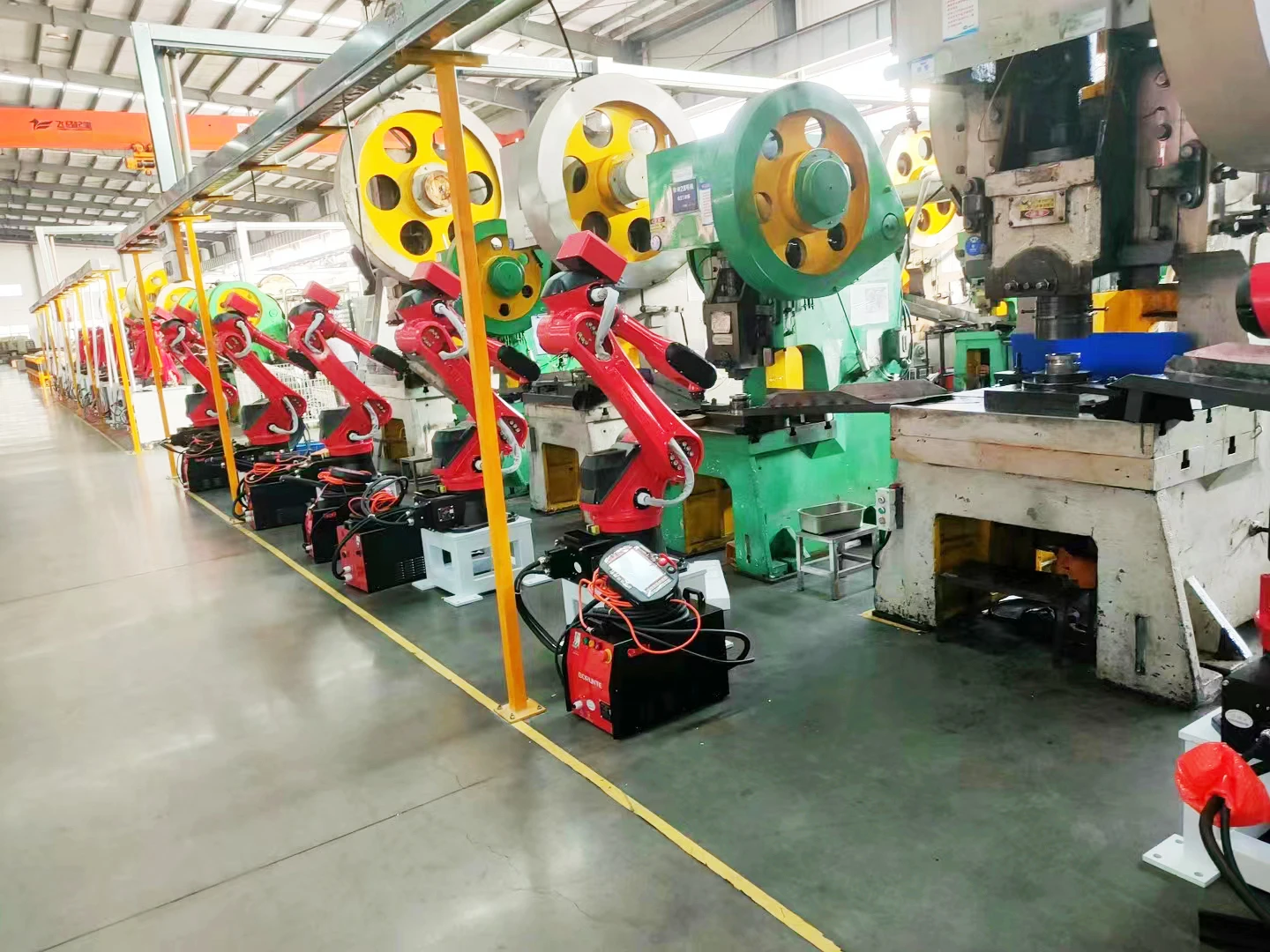

stamping
injection molding

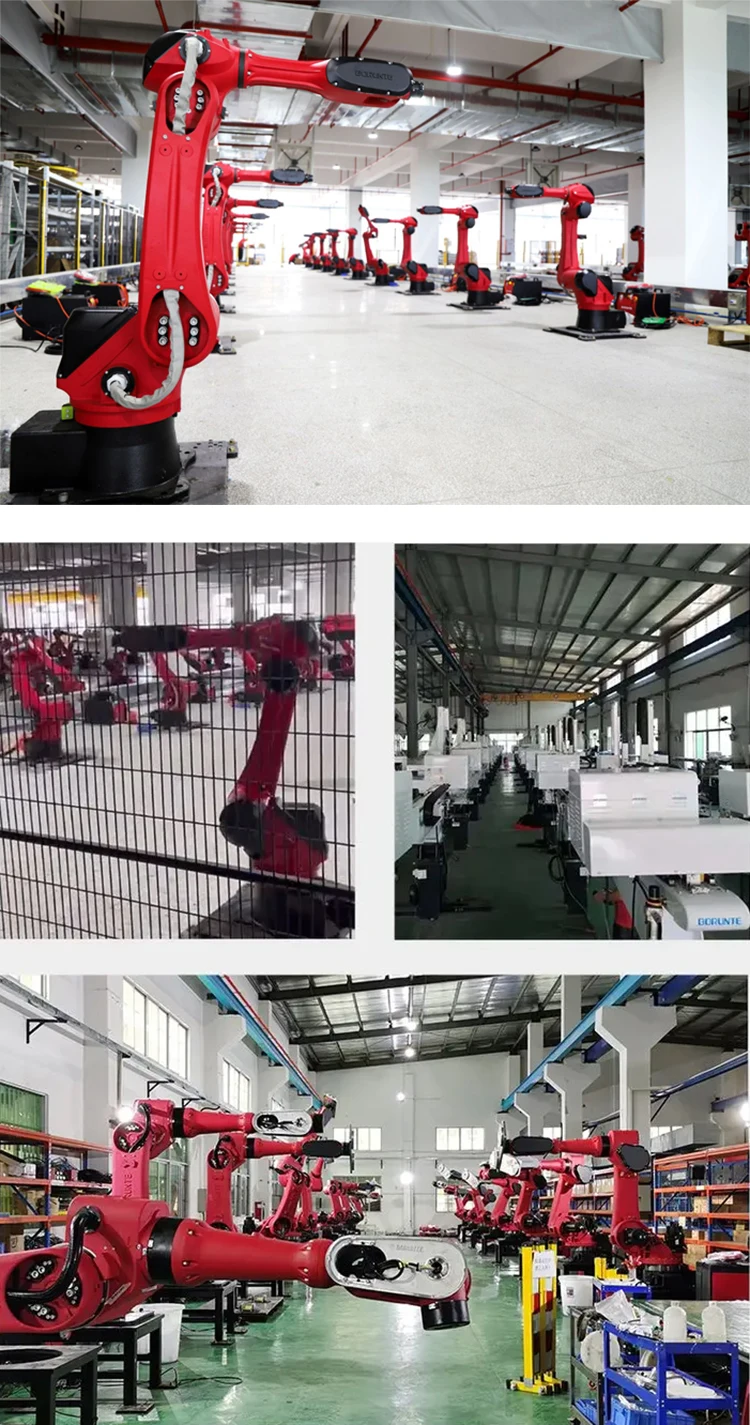

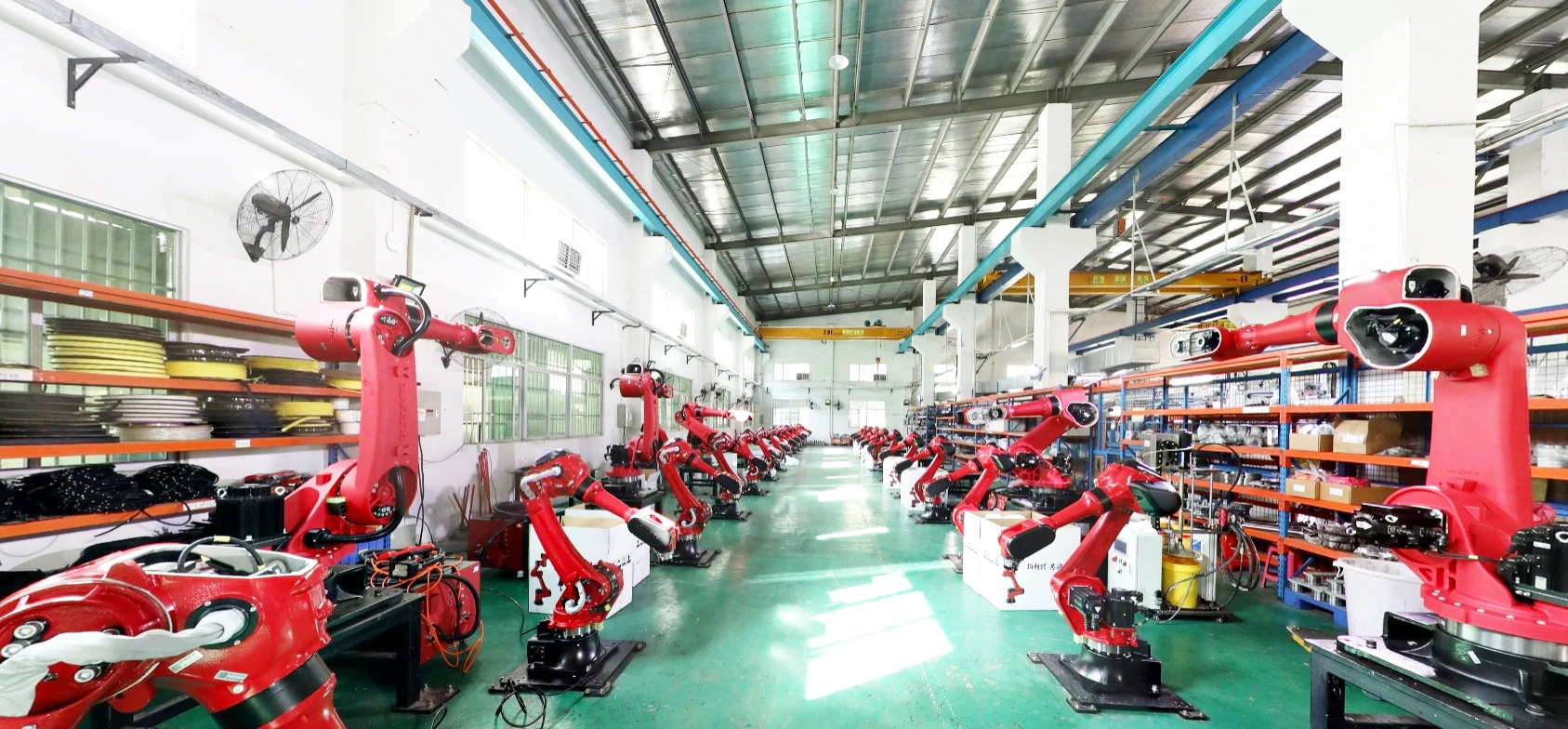

Company Profile
