Products Description
Product Paramenters
Shrink Wrapping Machine
Suitable for large quantity shrink wrapping industries such as stationery, food, cosmetic, metal industries etc,imported PLC automatic program control, easy operation, safety protection and alarm function, and effectively prevent incorrect,packaging, Equipped with imported horizontal and vertical detection photoelectric, easy to switch selection. It has the function of contact, specially designed for packing small size products. The machine can be connected with the production line, no need additional operators.
|
Machine
|

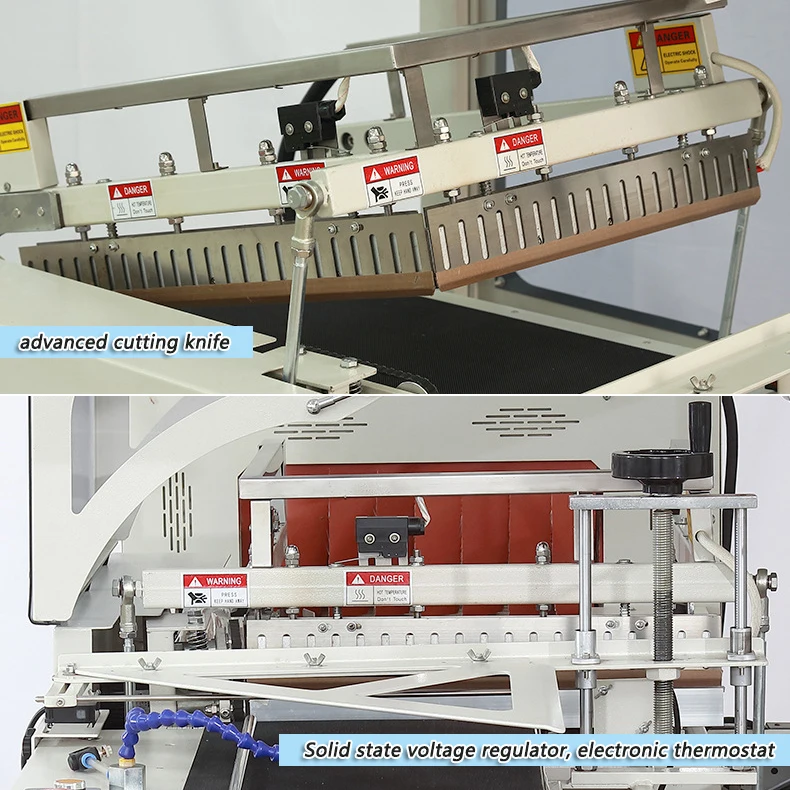

Sealing And Cutting
|

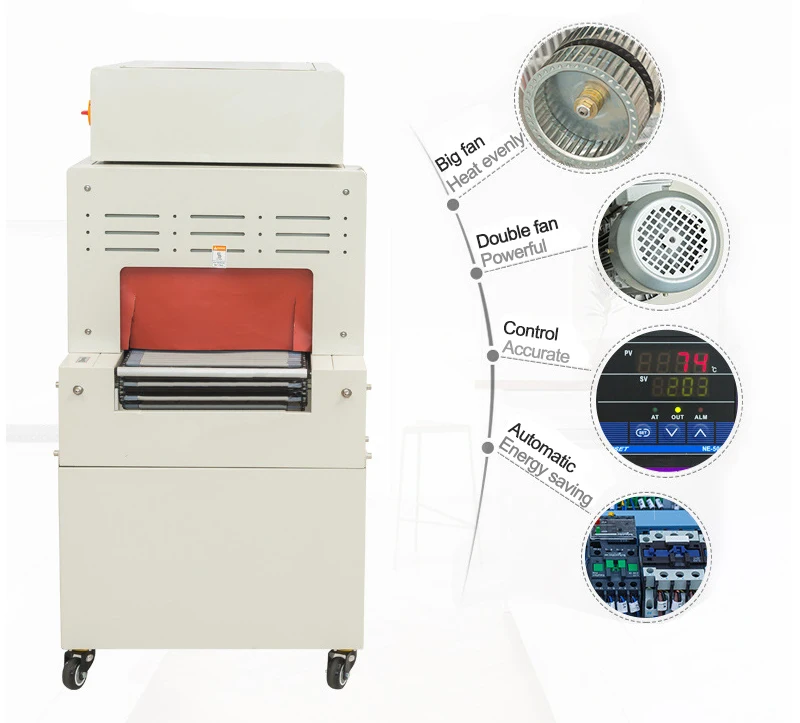

Shrink Tunnel
|
|
Machine size(L*W*H)
|
1685*828*1480mm
|
1300*700*1465mm
|
|
Max.packing size
|
(L)≤500 (W)≤430 (H)≤200mm
|
(L)700*(W)350*(H)200mm
|
|
Max.sealing size
|
(L)550* (W)450mm
|
–
|
|
Packing speed
|
15~25pcs/min
|
0-15m/min
|
|
Machine weight
|
225kg
|
260kg
|
|
Power
|
2.5kw
|
9kw
|
|
Voltage
|
1PH 220V 50Hz
|
3PH 380V 50Hz
|
|
Air pressure
|
6-8kg/cm2
|
–
|
|
Film material
|
POF
|
POF
|

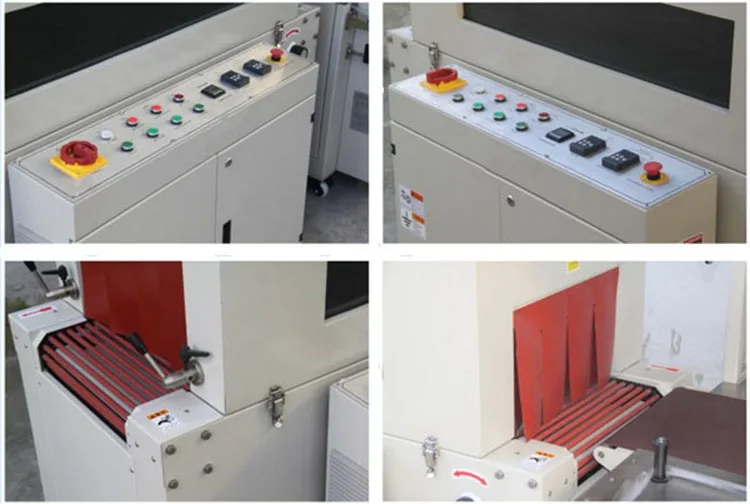

Details Images
