Product Description

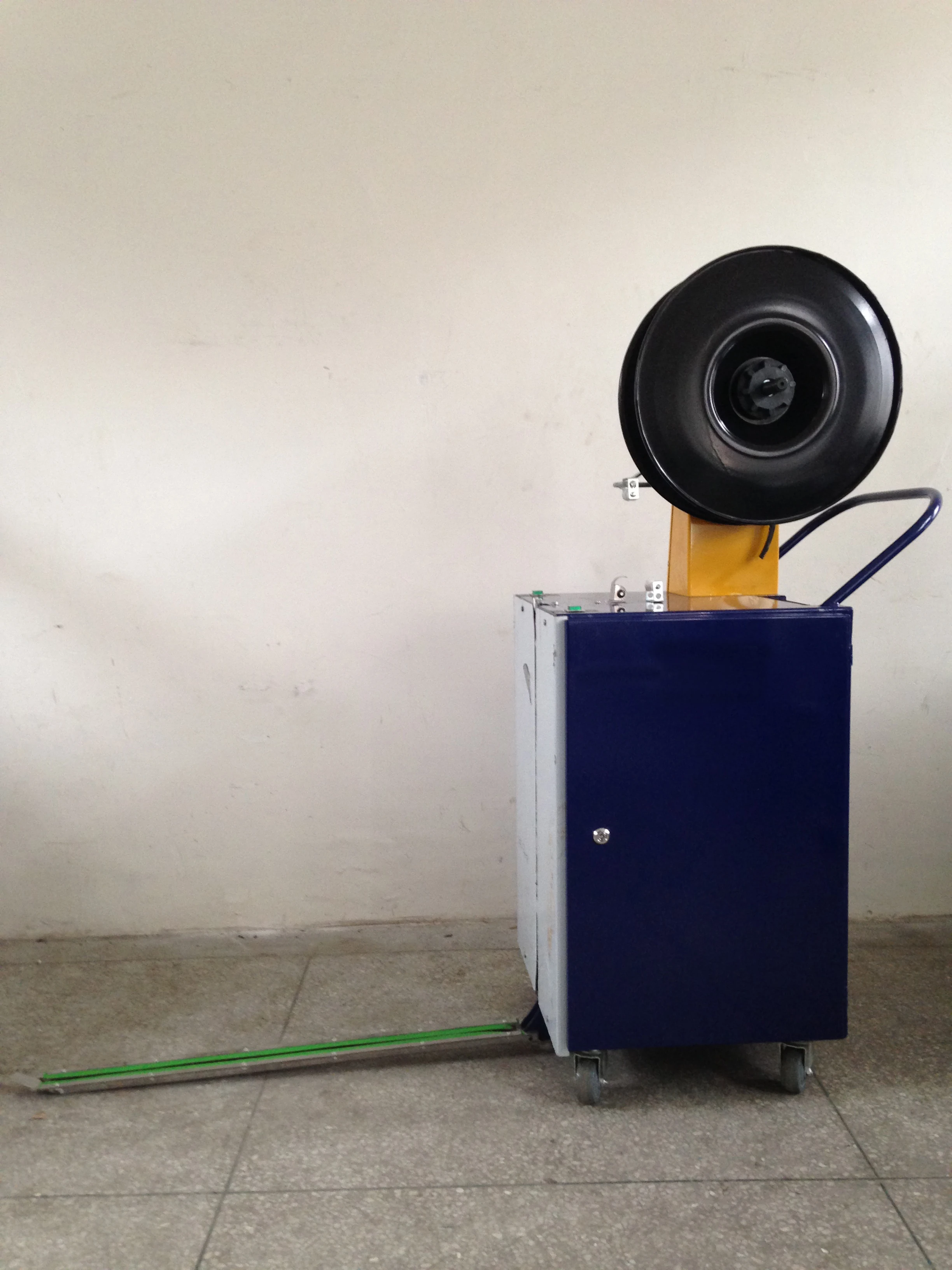

Semi Automatic PP Pallet Strapping Packing Machine

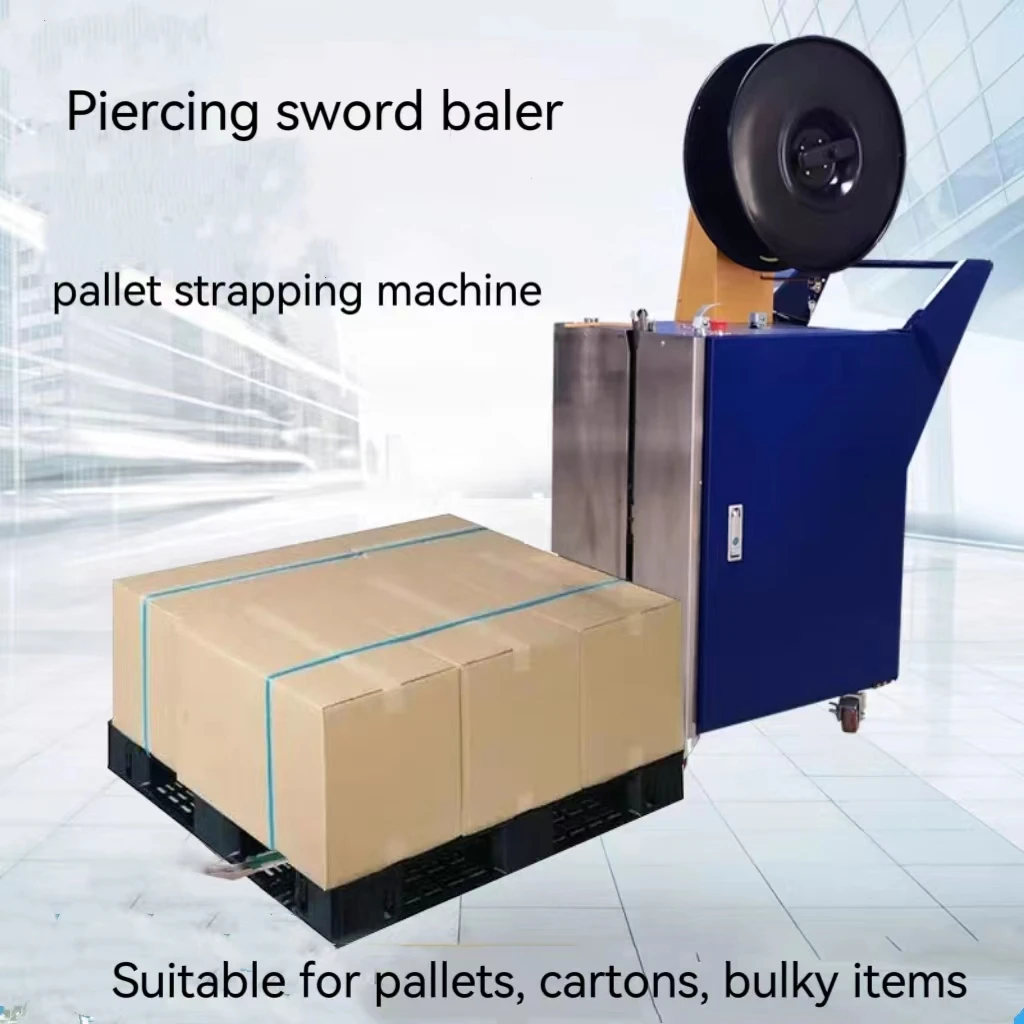

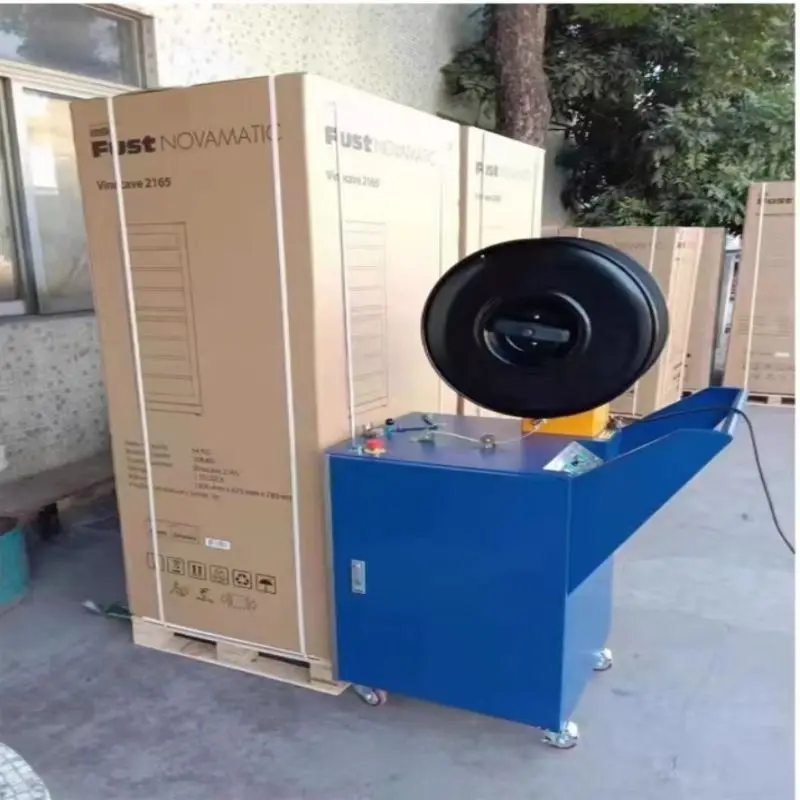

The pallet baler is suitable for packaging pallet goods. The open-bottom movable bow frame can be easily threaded and the pallet and packaged goods can be firmly bundled together.
- Easy strap feeding through pallet;
- Can quickly pack the large size products by single operator; c. High tension capabilities with polyester strap; d. Polypropylene strap can be also used; e. Speed up the process of skid strapping; f. Eliminate the trouble of hand tools;
Product Parameters
Model |
KPW-130A |
Strap Material |
PP |
Strapping Size |
no limit |
Strapping Speed |
2.2s /Bundle |
Max.Tension Adjustment |
0-100kgs |
Suitable PP Strap Size |
Width:9-16mm,thickness:0.5-1mm |
Voltage | 1PH,110V/220V,50HZ/60HZ |
Power |
500W |

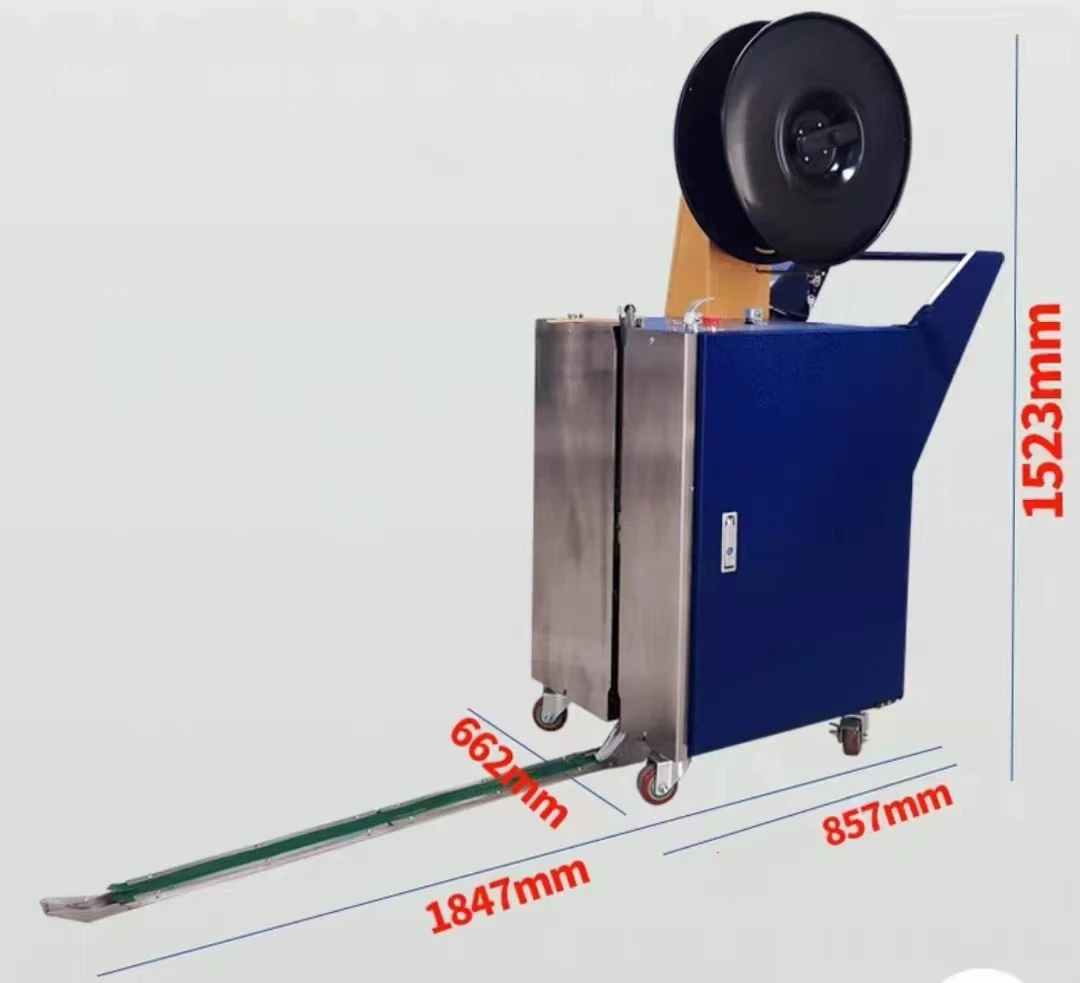

Machine Size |
1870*550*1530mm (L*W*H) |
Machine Weight |
150kgs |

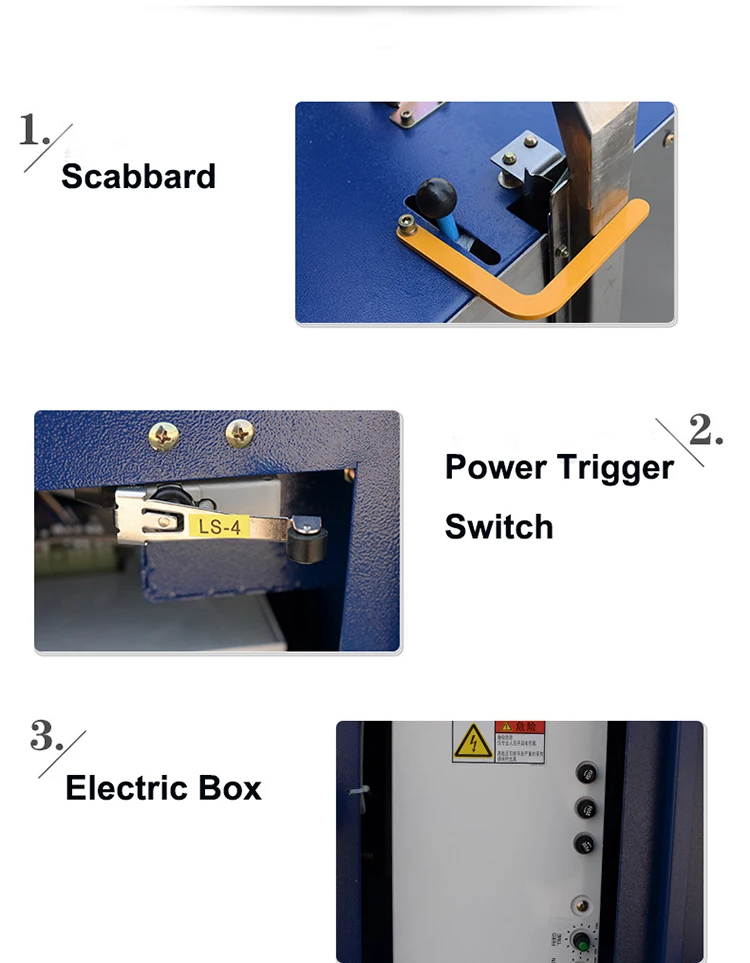

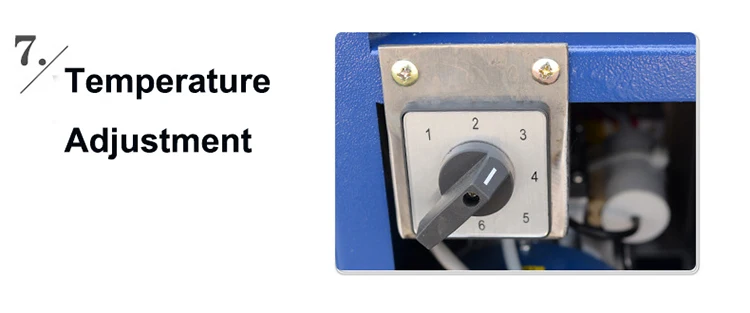

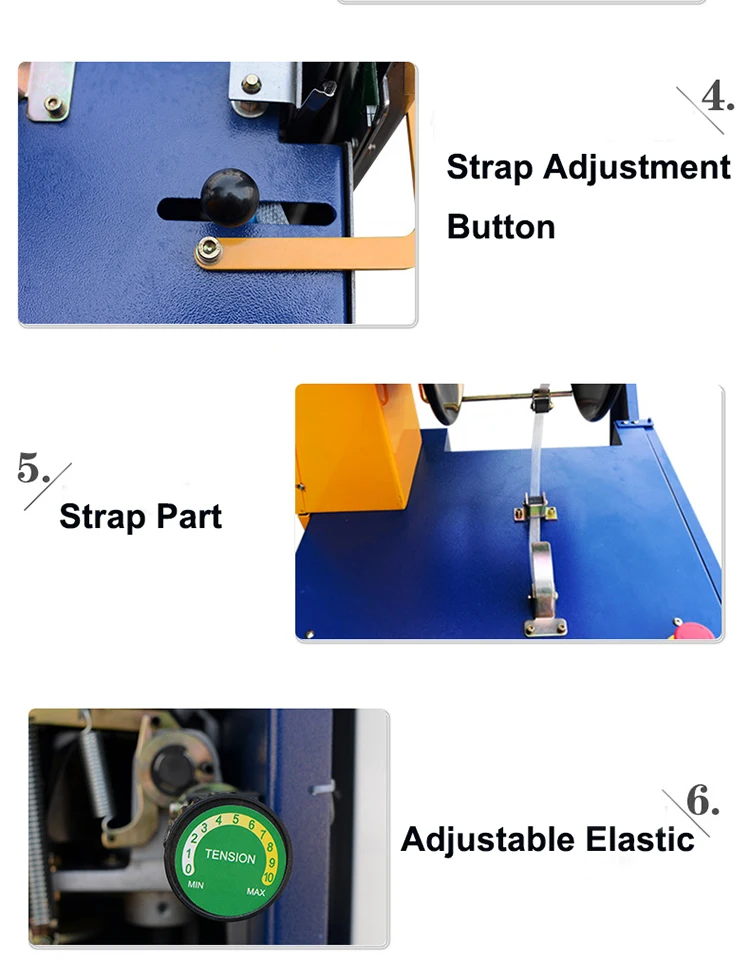

Details Images















FAQ | Possible Causes | solution |
1.There is a quality problem with the strapping or it is not a strapping strap for machine use. | Packing straps need to be replaced immediately; | |
The strapping is not tightly fused and will collapse. | 2.The fusion temperature of the packing tape is wrong, too high or too low | Need to adjust to appropriate fusion temperature |
3.The position of the heating plate is deviated | Need to adjust the angle of the heating plate | |
The packing tape cannot be ejected and is stuck in the belt channel of the pallet strapping machine. | 1.The strapping strength of the baler is not enough | Need to adjust the strapping force of the baler |
1.The packaging tape is installed incorrectly | Need to reinstall the packaging tape; | |
The pallet strapping machine does not convey the PP belt | 2.The strapping method is wrong | Need to re-thread the belt the correct way |
3.The loading time of the packing belt is not enough. | Need to check and adjust to the correct tape feed time |
