Parameter Table

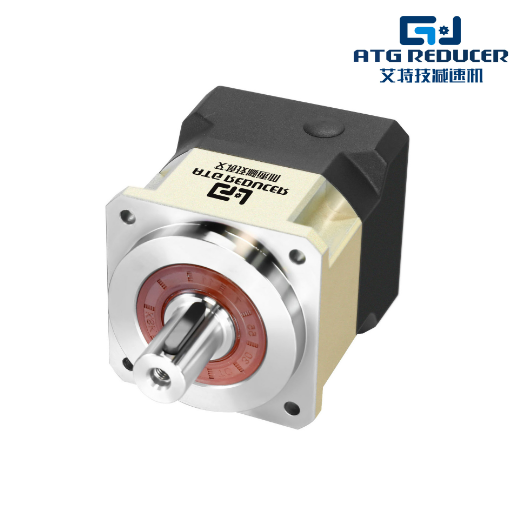

| PGH60 | Single stage | |||||||
| Reduction ratio | i | 3 | 4 | 5 | 7 | 8 | 10 | |
| Rated output torque | Nm | 53 | 55 | 54 | 44 | 37 | 37 | |
| Maximum output torque | Nm | 3 times rated output torque | ||||||
| Rated input speed | rpm | 5000 | ||||||
| Maximum input speed | rpm | 10000 | ||||||
| Ultra-precision backlash | arcmin | ≤2 | ||||||
| Precision backlash | arcmin | ≤4 | ||||||
| Standard backlash | arcmin | ≤6 | ||||||
| Maximum radial load | N | 1010 | ||||||
| Maximum axial load | N | 600 | ||||||
| Average service life | hr | 20000* | ||||||
| Full load efficiency | % | ≥97% | ||||||
| 0perating temperature | °C | .-10°C~+90°C | ||||||
| Lubrication | Synthetic lubricating grease | |||||||
| Protection level | IP65 | |||||||
| Installation method | Any | |||||||
| Noise value(n1=3000rpm) | dB | ≤58 | ||||||
| Moment of inertia | kg.cm² | 0.23 | 0.18 | 0.17 | 0.14 | 0.14 | 0.14 | |
Note: 1. Reduction ratio (i=Nin/Nut) 2. When the output speed is 100rpm, it acts on the center position of the output shaft* Continuous operation reduces the service life by half.
