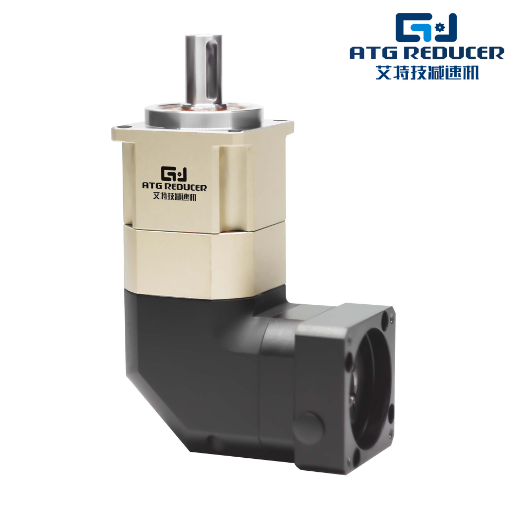

Hộp số 90 độ PGRH Stage 2

Name: Hộp số 90 độ PGRH Stage 2
SKU: 2962
Availability: InStock

Giá gốc là: 1.000 ₫.Giá hiện tại là: 50 ₫.

Download

Parameter Table

PGRH42	Double level
Reduction ratio	i	15	20	25	30	35	40	50	60	70	80	100	120	140	160	200
Rated output torque	Nm	20	19	22	22	22	22	22	22	22	22	22
Maximum output torque	Nm	3 times rated output torque
Rated input speed	rpm	5000
Maximum input speed	rpm	10000
Ultra-precision backlash P0	arcmin
Precision backlash P1	arcmin	≤7
Standard backlash P2	arcmin	≤9
Maximum radial load	N	515
Maximum axial load	N	410
Average service life	hr	20000*
Full load efficiency	%	≥92%
0perating temperature	°C	.-10°C～+90°C
Lubrication	Synthetic lubricating grease
Protection level	IP65
Installation method	Any direction
Noise value（n1=3000rpm)	dB	≤61
Moment of inertia	kg.cm²	0.09	0.09	0.09	0.09	0.09	0.09	0.09	0.09	0.09	0.09	0.09

PGH42	Single stage
Reduction ratio	i	3	4	5	6	7	8	10	14	20
Rated output torque	Nm	20	19	22	20	19	17	14
Maximum output torque	Nm	3 times rated output torque
Rated input speed	rpm	5000
Maximum input speed	rpm	10000
Ultra-precision backlash P0	arcmin
Precision backlash P1	arcmin	≤4
Standard backlash P2	arcmin	≤6
Maximum radial load	N	515
Maximum axial load	N	410
Average service life	hr	20000*
Full load efficiency	%	≥95%
0perating temperature	°C	-10°C～+90°C
Lubrication	Synthetic lubricating grease
Protection level	IP65
Installation method	Any direction
Noise value（n1=3000rpm)	dB	≤61
Moment of inertia	kg.cm²	0.09	0.09	0.09	00.09	0.09	0.09	0.09
