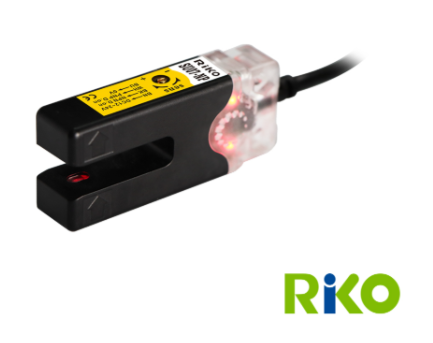

Cảm biến quang điện dạng khe SU07-NP

Giá gốc là: 1.000 ₫.Giá hiện tại là: 50 ₫.

The U-shaped width is 7mm, and the detection range is large.
•High brightness LED action light.
•Multi-turn (12 turns) VR adjustment makes detection more convenient.
•Visible red light detection, suitable for position reading and mark point detection.

Đã bao gồm thuế VAT
Miễn phí vận chuyển

Download

Model	U-shape Photo Sensor
Detection distance	7mm
Minimum detectable object	Opaque ( Ø0.7 x 10.0mm )
Light Emitter	Infrared LED 660 nm
Operating voltage	DC12 ~ 24V
Current consumption	30 mA Max.
Load current	100mA Max. at DC24V
Model / Type	NPN D.on / L.on , PNP D.on / L.on
Response time	500 Hz
Ambient illumination	Incandescent light : 1,000 lux max.
Insulation resistance	20MΩ min. (DC500V)
Voltage withstandability	AC500V 60Hz for 60 Sec.
Opera tetemperature	-10℃ ~ + 55℃
Ambient humidity	35% ~ 85% RH
Protection degree	IP50
Vibration resistance	1.5 mm peak to peak amplitude, 10 to 55 Hz, 2 hours in X,Y and z directions
Shock resistance	50 G repeated 10 times each in X,Y and Z directions.
Casing material	ABS & PC
Wiring method	Pre-wired Ø4.2 x 2 M / 4-wires
Weight	65g

Thông số kỹ thuật

Model	U-shape Photo Sensor
Detection distance	7mm
Minimum detectable object	Opaque ( Ø0.7 x 10.0mm )
Light Emitter	Infrared LED 660 nm
Operating voltage	DC12 ~ 24V
Current consumption	30 mA Max.
Load current	100mA Max. at DC24V
Model / Type	NPN D.on / L.on , PNP D.on / L.on
Response time	500 Hz
Ambient illumination	Incandescent light : 1,000 lux max.
Insulation resistance	20MΩ min. (DC500V)
Voltage withstandability	AC500V 60Hz for 60 Sec.
Opera tetemperature	-10℃ ~ + 55℃
Ambient humidity	35% ~ 85% RH
Protection degree	IP50
Vibration resistance	1.5 mm peak to peak amplitude, 10 to 55 Hz, 2 hours in X,Y and z directions
Shock resistance	50 G repeated 10 times each in X,Y and Z directions.
Casing material	ABS & PC
Wiring method	Pre-wired Ø4.2 x 2 M / 4-wires
Weight	65g
