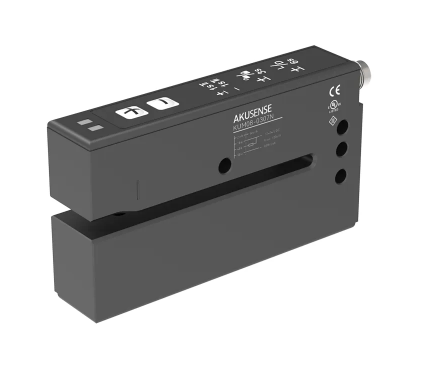

Cảm biến nhận biết nhãn KUM08-0307P

Giá gốc là: 1.000 ₫.Giá hiện tại là: 50 ₫.

Download

Model	KUM08-0307P
Working principle	Ultrasonic detection
Housing style	U-shaped fork
Optical working principle	Through-beam
Light Source	Ultrasonic
Slot Width	3.2mm
Slot depth	69mm
Detecting object	2mm minimum label gap
Indicator light	Output function: Red LED, operational status: Green LED
Switching mode	L.on (light-on action)/D.on (dark-on action) switchable
Output Mode	PNP collector open
Response Time	0.3ms
Switching frequency	1.5kHz
Repeat accuracy	±0.2
Operating Voltage	12~24V DC±10%
Power Consumption	≤45mA
Residual Voltage	<2V@1L=100mA
Load Current	≤100mA
Insulation Resistance	DC500V insulation resistance >50MΩ
Withstand Voltage	Insulation voltage of VC100V when current <0.1mA
ProtectiOn Circuit	short-circuit protection
Operating temperature	-5~55℃
Storage Temperature	-20~70℃
Operating humidity	35~95%RH(no condensation)
Storage Humidity	35~95%RH(no condensation)
Environmental illumination	Unavailable
Vibration Resistance	10~50Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes
Protection rating	IP65
Connection Method	M8/4-pin plug
Dimensions	85.5×47.3×18.2mm
Material	Aluminum
Weight	0.019kg
