| Model | KIM07-0204NP |
| Working principle | Photoelectric sensor |
| Housing style | Shape U |
| Optical working principle | Through-beam |
| Light Source | Infrared LED, 940nm |
| Slot Width | 2mm |
| Slot depth | 42mm |
| Detecting object | 2mm (minimum label gap) |
| Indicator light | Output function: Red LED, operational status: Green LED |
| Switching mode | L.on (light-on action)/D.on (dark-on action) switchable |
| Output Mode | NPN and PNP collector open |
| Response Time | 0.02ms |
| Switching frequency | 100kHz |
| Repeat accuracy | ±0.02mm |
| Hysteresis | ≤0.02mm |
| Operating Voltage | 12~24V DC±10% |
| Power Consumption | ≤40mA |
| Residual Voltage | ≤2V |
| Load Current | ≤100mA(24VDC) |
| Insulation Resistance | ≥50MΩ(500VDC) |
| Withstand Voltage | 1000VAC (50/60Hz) |
| ProtectiOn Circuit | Reverse polarity protection/short-circuit protection |
| Operating temperature | -10℃~+55℃ |
| Storage Temperature | -30℃~+70℃ |
| Operating humidity | 35%RH~85%RH |
| Storage Humidity | 35%RH~85%RH |
| Environmental illumination | Sunlight ≤10000 Lux |
| Vibration Resistance | 10~55Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes |
| Protection rating | IP65 |
| Connection Method | M8/4-pin plug |
| Dimensions | 32.5×10.0x61.0mm |
| Material | Aluminum |
| Weight | 0.035kg |
-95%

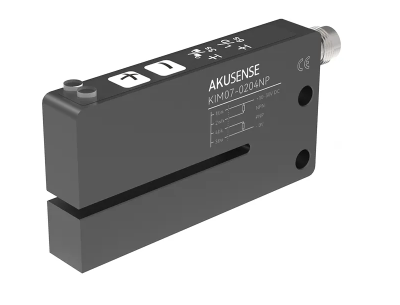

Cảm biến nhận biết nhãn KIM07-0204NP
Giá gốc là: 1.000 ₫.50 ₫Giá hiện tại là: 50 ₫.
- Kèm theo bản vẽ CAD, 3D, PDF
- Đã bao gồm thuế VAT
- Miễn phí vận chuyển
