Parameter Table

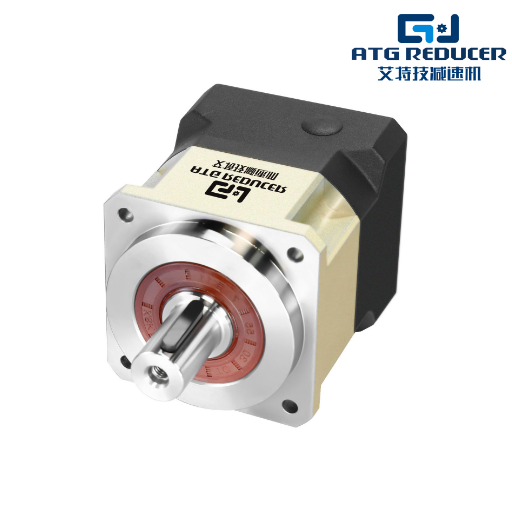

| PGL115 | Single stage | ||||||
| Reduction ratio | i | 3 | 4 | 5 | 7 | 8 | 10 |
| Rated output torque | Nm | 208 | 290 | 330 | 300 | 260 | 140 |
| Maximum output torque | Nm | 3 times rated output torque | |||||
| Rated input speed | rpm | 4000 | |||||
| Maximum input speed | rpm | 8000 | |||||
| Ultra-precision backlash P0 | arcmin | ||||||
| Precision backlash P1 | arcmin | ≤6 | |||||
| Standard backlash P2 | arcmin | ≤8 | |||||
| Maximum radial load | N | 515 | |||||
| Maximum axial load | N | 410 | |||||
| Average service life | hr | 20000* | |||||
| Full load efficiency | % | ≥97% | |||||
| 0perating temperature | °C | -10°C～+90°C | |||||
| Lubrication | Synthetic lubricating grease | ||||||
| Protection level | IP65 | ||||||
| Installation method | Any direction | ||||||
| Noise value（n1=3000rpm) | dB | ≤63 | |||||
| Moment of inertia | kg.cm² | 3.25 | 2.74 | 2.71 | 2.62 | 2.58 | 2.57 |
