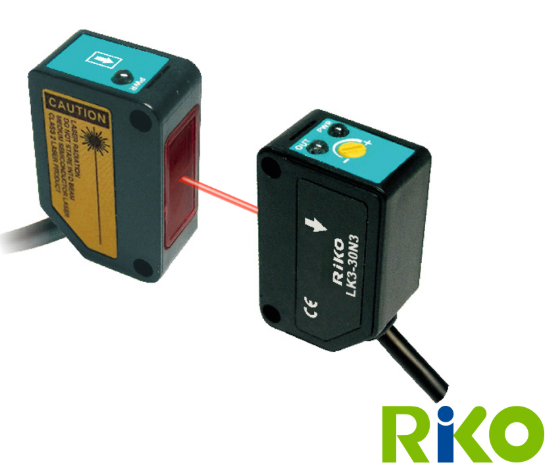

| Model | Laser Miniature Photo Sensor |
|---|---|
| Sensing distance | Through beam |
| Operating distance | 30m |
| Light Emitter | Red laser 650 nm |
| Laser class | 2 |
| Operating voltage | 12 ~ 24 V ±10% |
| Current consumption | 25mA max |
| Load current | Max 100 mA at DC 24V |
| Diameter of light spot | <11mm dia. at 10m |
| Model / Type | NPN D.on/ L.on PNP D.on/ L.on |
| Response time | 800 Hz |
| Insulation resistance | 20M ohm (DC 500V) |
| Voltage withstandability | AC 1000V 60Hz for 60sec |
| Opera tetemperature | -20℃ ~ + 40℃ |
| Operating temperature | 35% – 85% RH |
| Protection degree | IP64 |
| Casing material | ABS |
| Wiring method | Pre-wired Ø4.2 x 2M / 4-wires |
| Weight | 40g |
