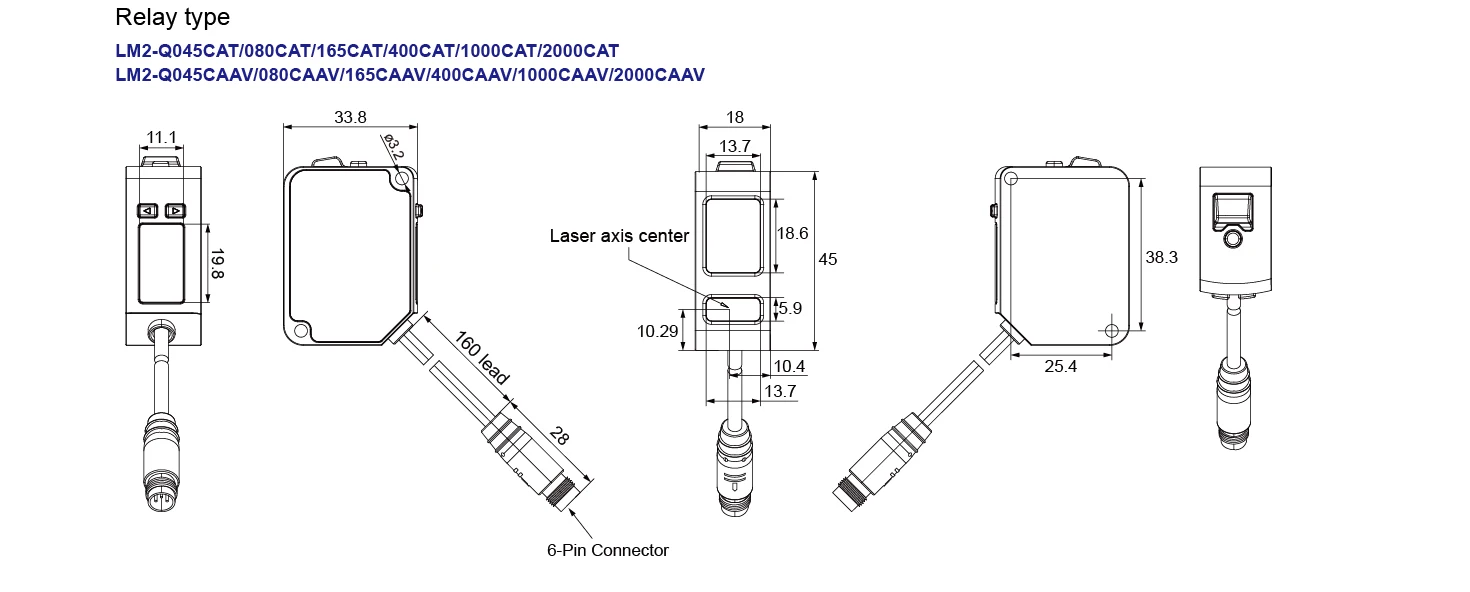

Relay Type
|
Type
|
Short type
|
Middle type
|
Long type
|
||||
|
Model
|
NPN/PNP+ Analog voltage/current
|
LM2-Q045CAAV
|
LM2-Q080CAAV
|
LM2-Q165CAAV
|
LM2-Q400CAAV
|
LM2-Q1000CAAV
|
LM2-Q2000CAAV
|
|
NPN/PNP+RS-485
|
LM2-Q045CAT
|
LM2-Q080CAT
|
LM2-Q165CAT
|
LM2-Q400CAT
|
LM2-Q1000CAT
|
LM2-Q2000CAT
|
|
|
Measuring center distance
|
30mm
|
50mm
|
100mm
|
200mm
|
400mm
|
600mm
|
|
|
Measurement range
|
25~45mm
|
35~80mm
|
60~165mm
|
100~400mm
|
150~1000mm
|
150~2000mm
|
|
|
Repeat precision
|
10μm
|
30μm
|
70μm
|
200mm@100~300mm
400mm@300~400mm |
0.5mm@150~400mm
1mm@400~600mm 3mm@600~800mm 6mm@800~1000mm |
0.5mm@150~400mm
1mm@400~600mm 3mm@600~800mm 6mm@800~1200mm 10mm@1200~1800mm 20mm@1800~2000mm |
|
|
Linear accuracy
|
±0.1%F.S.
|
±0.2%FS.(100~300mm)
±0.3%F.S.(300~400mm)
|
±0.2%FS.(150~400mm)
±0.3%FS.( 400~600mm)
±0.5%FS.(600-800mm)
±1%FS.(800~1000mm)
|
±0.2%FS.(150~400mm)
±0.3%FS.( 400~600mm)
±0.5%FS.(600~800mm)
±1%FS.(800~1200mm)
±1.5%FS.(1200~1800mm)
±2%FS.(1800~2000mm) |
|||
|
Temperature profile
|
0.03%F.S./℃
|
||||||
|
Light source
|
Red semiconductor laser Class 2
Maximum output: 1mW, luminous beam wavelength: 650nm
|
||||||
|
Beam diameter
|
Approx.0.5*1.5mm at 25mm
Approx.0.3*0.6mm at 45mm |
Approx.0.5*1.5mm at 35mm
Approx.0.3*0.5mm at 80mm |
Approx.0.5*1.5mm at 60mm
Approx.0.4*0.5mm at 160mm |
Approx.Ф0.8mm at 100mm
Approx.Ф0.6mm at 400mm |
Approx.Ф1mm at 150mm
Approx.Ф2mm at 1000mm |
Approx.Ф1mm at 150mm
Approx.Ф2mm at 1000mm Approx.Ф7mm at 2000mm |
|
|
Power voltage
|
12V~24V DC±10% including ripple 10%(P-P)
|
||||||
|
Current consumption
|
Under 35mA(at power voltage 24VDC),under 60mA(at power voltage 12VDC)
|
||||||
|
Control output
|
NPN/PNP switchable ; max.output current 200mA
|
||||||
|
Analog output
|
0-20mA;4-20mA;0-5V;0-10V;±5V;±10V
|
||||||
|
Response time
|
1.5ms/5ms/10ms/50ms switchable
|
||||||
|
Extemnal input
|
NPN contactless input valid: 0V~+1.2VDC Input impedance:approx.10kΩ
|
||||||
|
Protective structure
|
IP67
|
||||||
|
Ambient temperature
|
-10℃~40℃(No freezing)
|
||||||
|
Ambient humidity
|
35%~85%RH(no condensation)
|
||||||
|
Ambient light
|
Incandescent: under 3000lux
|
||||||
|
Powet cable
|
15cm highly flexible drag chain cable M8 6PIN
|
||||||
|
Material
|
Case: aluminum alloy, indicator cover: PC, lens: glass, button: ABS, cable: PVC
|
||||||
|
Weight
|
Approx.150g(cable included)
|
||||||
Note: If no measurement conditions are specifed, the conditions of use are as folows: supply voltage: 24VDC, ambient temperature. +20℃, Response time: 10ms, analog output value of measured center distance, Object: white difuser.
Features:

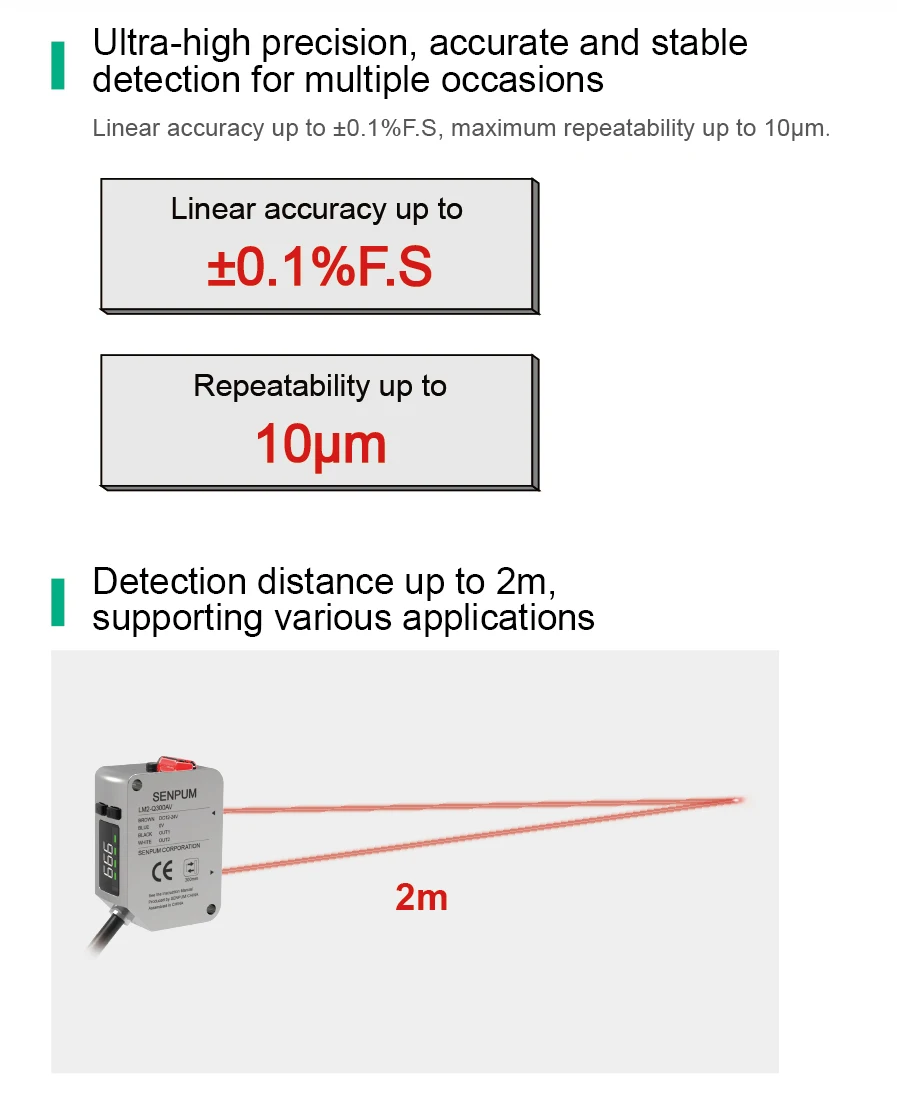

1. Ultra-high precision, accurate and stable detection in many occasions. Linear accuracy up to ±0.1%F.S Maximum linear accuracy :±10μm Ultra-small spot: about Ф0.8mm 2. Super long range Minimum range :20mm Maximum range :1850mm Detection distance up to 2m
3. Have a variety of communication methods RS-485、Analog output、NPN/PNP output
4. Sense head amplifer integrated, ultra-small size, simple and easy to install.
5. With switching output, the upper and lower limit positions are easier to set.
6. Analog output 4~20mAor 0..5V or 0…10V can be converted arbitrarily.

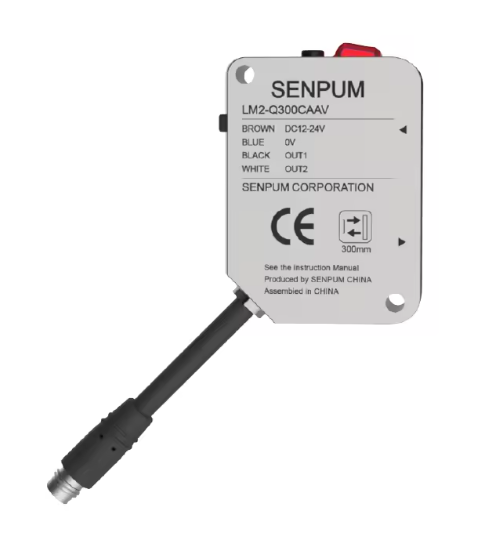

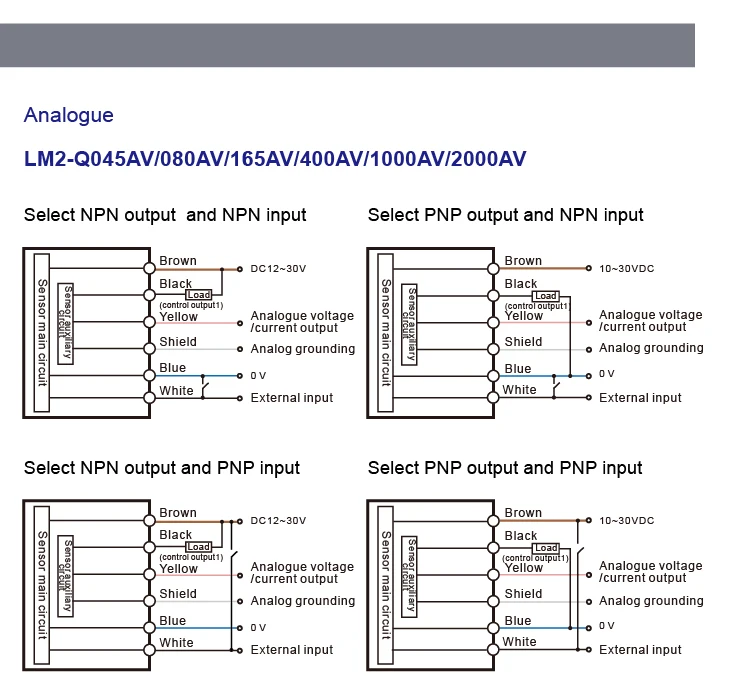

Product Details
Application

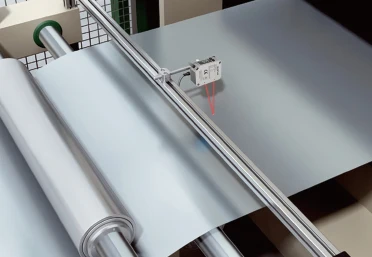

Sheet metal tracking

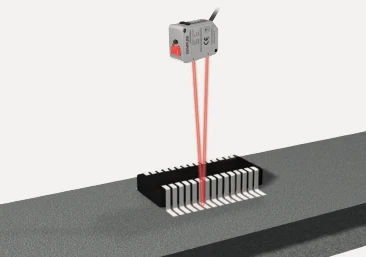

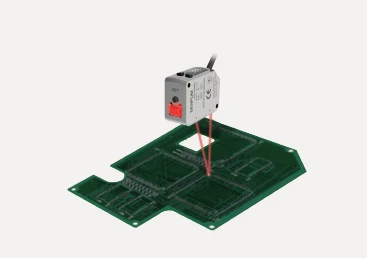

Pin detection
