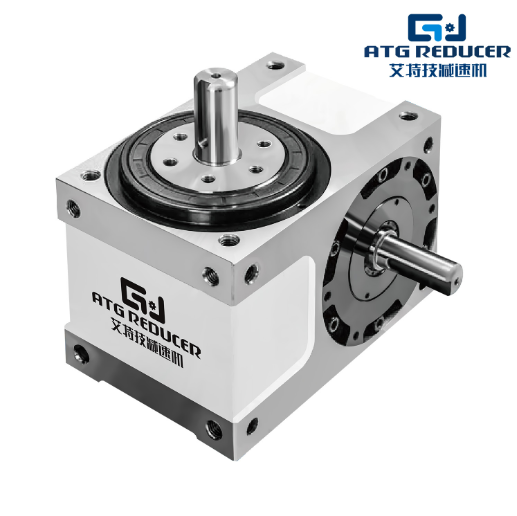

Bộ chia cam chính xác dòng DE

Name: Bộ chia cam chính xác dòng DE
SKU: 2985
Availability: InStock

Giá gốc là: 1.000 ₫.Giá hiện tại là: 50 ₫.

Download

Parameter Table

Item	Symbol	Unit	Value	Item	Symbol	Unit	Value	Item	Symbol	Unit	Value
Allowable radial load on output shaft	C1	Kgf	130	Permissible radial load of input shaft	C3	Kgf	85	GD² of input shaft (Note 1)	C6	Kgf-m²	3.2×10^ (-4)
Allowable axial load on the output shaft	C2	Kgf	140	Maximum bending moment of input shaft	C4	Kgf	110	Positioning and segmentation accuracy		Sec.	±30
Allowable torque on output shaft	Ts	Kgf-m	Reference torque table	Input shaft maximum torque	C5	Kgf-m	4	weight		Kg	7
Note 1: The GD ‘of the input shaft is the value within the dwell range. Note 2: The values of C1 to C5 are the values when the safety factor reaches 2.

Item	Symbol	Unit	Value	Item	Symbol	Unit	Value	Item	Symbol	Unit	Value
Allowable radial load on output shaft	C1	Kgf	130	Permissible radial load of input shaft	C3	Kgf	85	GD² of input shaft (Note 1)	C6	Kgf-m²	3.2×10^ (-4)
Allowable axial load on the output shaft	C2	Kgf	140	Maximum bending moment of input shaft	C4	Kgf	110	Positioning and segmentation accuracy		Sec.	±30
Allowable torque on output shaft	Ts	Kgf-m	Reference torque table	Input shaft maximum torque	C5	Kgf-m	4	weight		Kg	7
Note 1: The GD ‘of the input shaft is the value within the dwell range. Note 2: The values of C1 to C5 are the values when the safety factor reaches 2.
