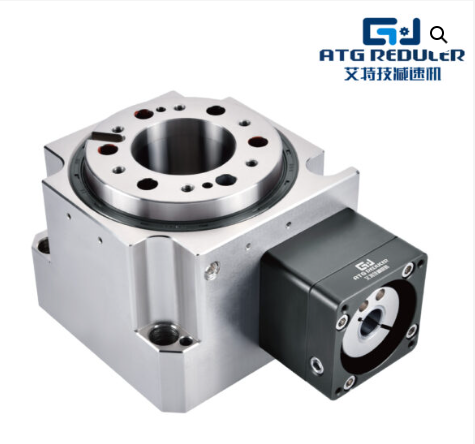

Bàn xoay rỗng dẫn động servo KT60

Giá gốc là: 1.000 ₫.Giá hiện tại là: 50 ₫.

Download

Model: KT60-30-5-22-31*31-M3

Specification	KT60-30-5-22-31*31-M3	Precision Lifetime h	20,000 (intermittent Operation)
Reduction ratio i	30	PositioningAccuracy arcmin	≤1
Rated output torque N.m	35	Repeatability Precision arcsec	≤30
Maximum radial force	3x rated output torque	adapted to servo motor W	100
Rotating platform bearing	Cross roller bearing	adapted to stepper motor	42
Allowable axial pressure N	2100	Protection Level	54
Rotating platform bearing	2100	Lubrication Method	Long-Lasting Lubrication
Allowable disk speed rpm	100	Transmission Efficiency	90
Rotating platform concentricity mm	≤0.01	Noise db	≤60
Rotating platform flatness mm	≤0.01	weight kg	0.9
Allowable overturning moment N.m	180	Installation Method	Arbitrary
Allowable inertial moment N.m	15	Design weight kg	10
Torsional rigidity N.m/rcmin	–
If the parallelism of the rotating platform has higher requirements, please contact our sales staff

Model: KT120-30-8-38.1-66.67-M4

Specification	KT120-30-8-38.1-66.67-M4	Precision Lifetime h	20,000 (intermittent Operation)
Reduction ratio i	30	PositioningAccuracy arcmin	≤1
Rated output torque N.m	115	Repeatability Precision arcsec	≤30
Maximum radial force	3x rated output torque	adapted to servo motor W	200-400
Rotating platform bearing	Cross roller bearing	adapted to stepper motor	57-86
Allowable axial pressure N	7300	Protection Level	54
Rotating platform bearing	7300	Lubrication Method	Long-Lasting Lubrication
Allowable disk speed rpm	100	Transmission Efficiency	90
Rotating platform concentricity mm	≤0.01	Noise db	≤60
Rotating platform flatness mm	≤0.01	weight kg	4.3
Allowable overturning moment N.m	520	Installation Method	Arbitrary
Allowable inertial moment N.m	50	Design weight kg	40
Torsional rigidity N.m/rcmin	–
If the parallelism of the rotating platform has higher requirements, please contact our sales staff

Specification	KT60-30-5-22-31*31-M3	Precision Lifetime h	20,000 (intermittent Operation)
Reduction ratio i	30	PositioningAccuracy arcmin	≤1
Rated output torque N.m	35	Repeatability Precision arcsec	≤30
Maximum radial force	3x rated output torque	adapted to servo motor W	100
Rotating platform bearing	Cross roller bearing	adapted to stepper motor	42
Allowable axial pressure N	2100	Protection Level	54
Rotating platform bearing	2100	Lubrication Method	Long-Lasting Lubrication
Allowable disk speed rpm	100	Transmission Efficiency	90
Rotating platform concentricity mm	≤0.01	Noise db	≤60
Rotating platform flatness mm	≤0.01	weight kg	0.9
Allowable overturning moment N.m	180	Installation Method	Arbitrary
Allowable inertial moment N.m	15	Design weight kg	10
Torsional rigidity N.m/rcmin	–
If the parallelism of the rotating platform has higher requirements, please contact our sales staff

Model: KT120-30-8-38.1-66.67-M4

Specification	KT120-30-8-38.1-66.67-M4	Precision Lifetime h	20,000 (intermittent Operation)
Reduction ratio i	30	PositioningAccuracy arcmin	≤1
Rated output torque N.m	115	Repeatability Precision arcsec	≤30
Maximum radial force	3x rated output torque	adapted to servo motor W	200-400
Rotating platform bearing	Cross roller bearing	adapted to stepper motor	57-86
Allowable axial pressure N	7300	Protection Level	54
Rotating platform bearing	7300	Lubrication Method	Long-Lasting Lubrication
Allowable disk speed rpm	100	Transmission Efficiency	90
Rotating platform concentricity mm	≤0.01	Noise db	≤60
Rotating platform flatness mm	≤0.01	weight kg	4.3
Allowable overturning moment N.m	520	Installation Method	Arbitrary
Allowable inertial moment N.m	50	Design weight kg	40
Torsional rigidity N.m/rcmin	–
If the parallelism of the rotating platform has higher requirements, please contact our sales staff
