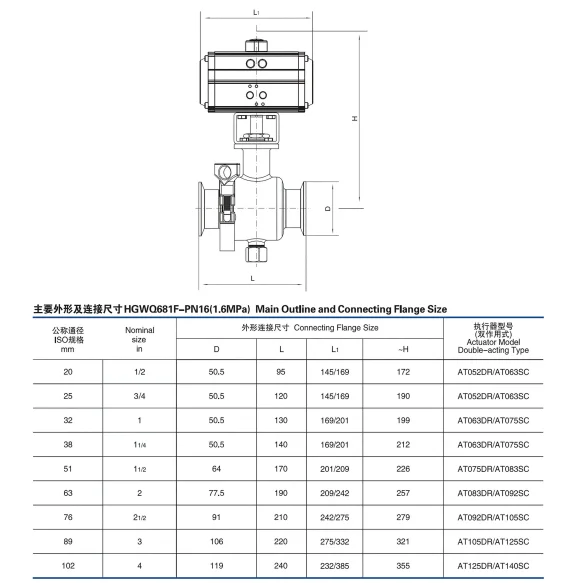

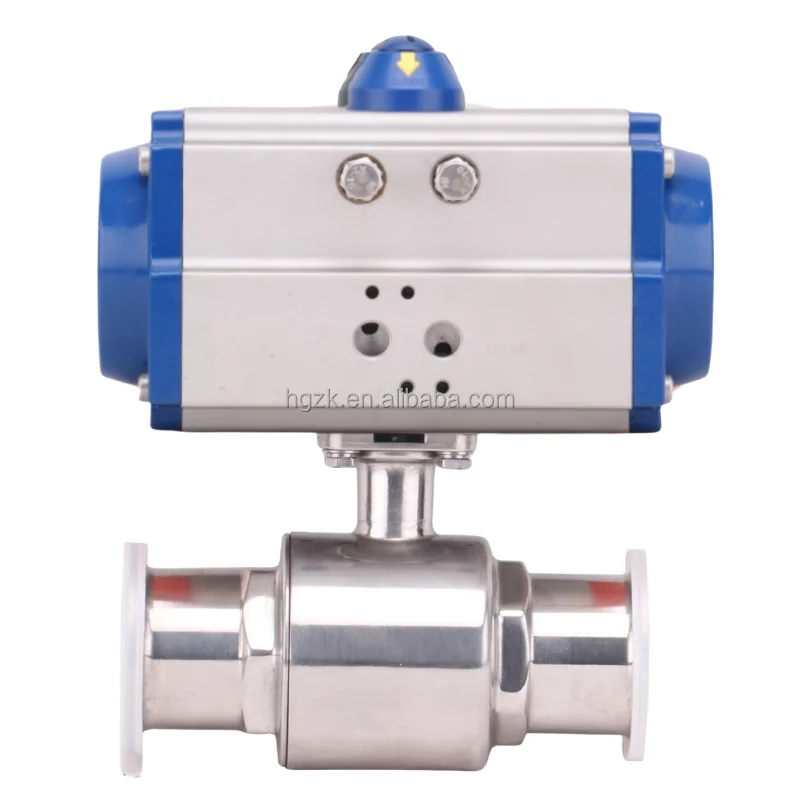

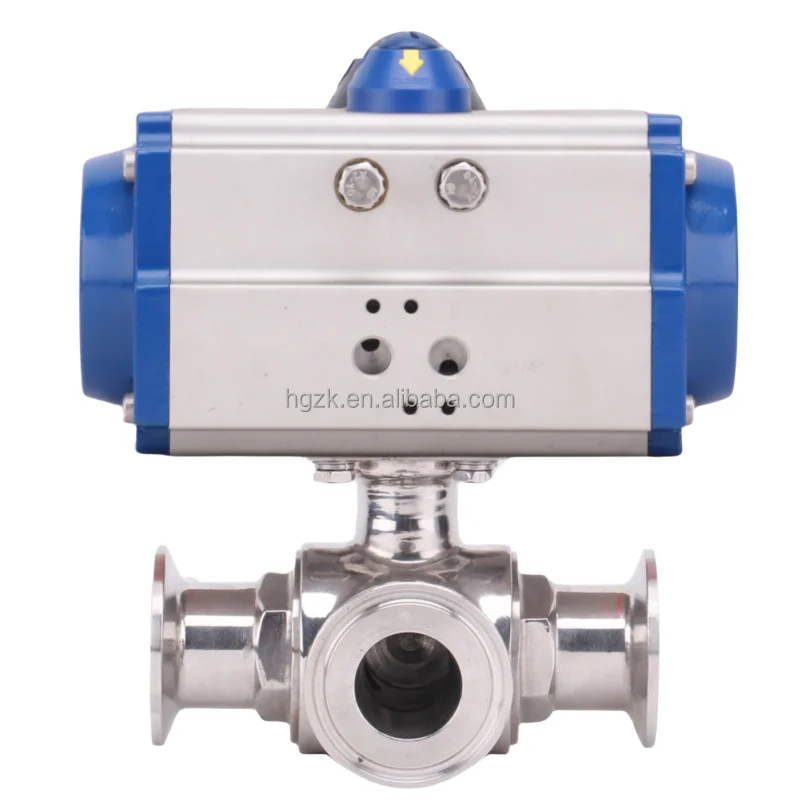

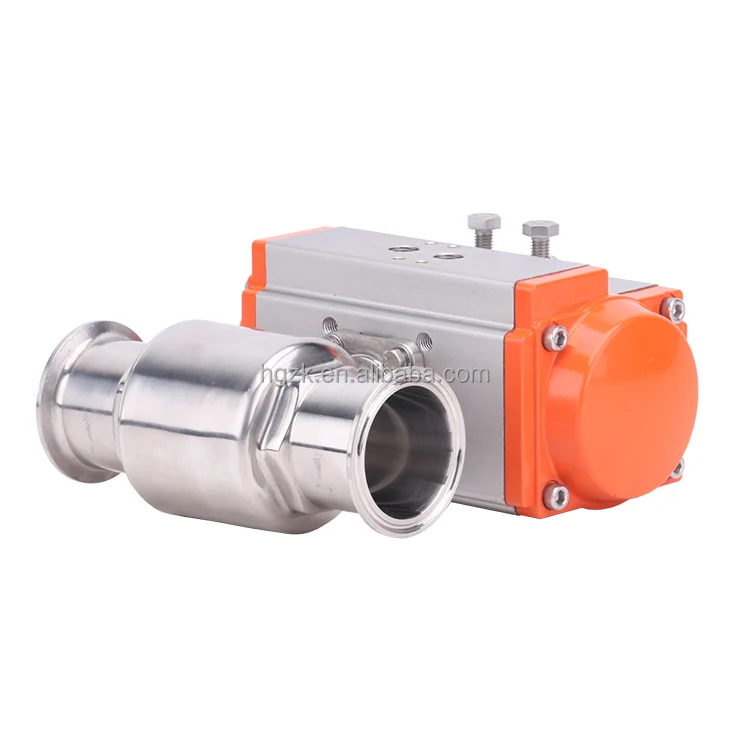

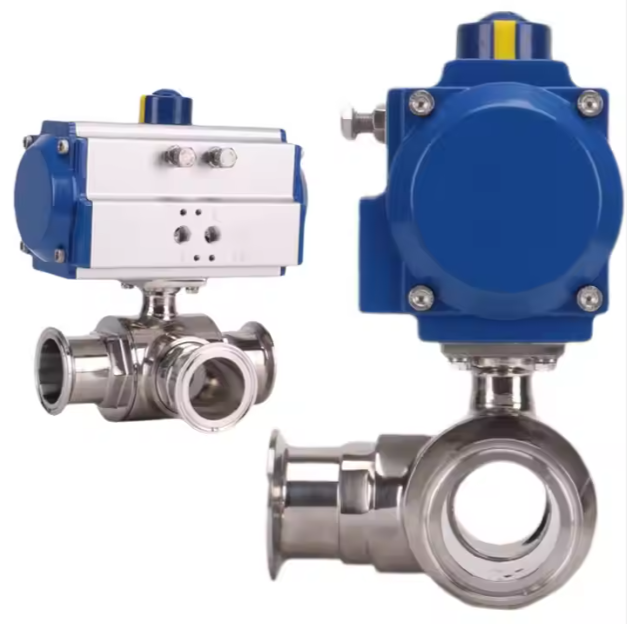

ball valve———————-sanitary pneumatic ball valve
Products specification: NPS 1/4“-3” (DN6-80)
Nominal pressure: PN 1.0/1.6MPa Applicable media: water, air, oil, acid Applicable temperature: – 20 – 280 C Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G Design and manufacture: GB/T 12224/ANSI B16.34 Inspection and test: GB/T 13927/API 598
|
ball valve
Material of Main Parts
|
Gate valve
Material of Main Parts
|
Globe valve
Material of Main Parts
|
||||
|
Part Name
|
Material
|
Part Name
|
Material
|
Part Name
|
Material
|
|
|
body
|
CF8M
|
CF8
|
body
|
ASTMA351 CF8M/CF8
|
body
|
stainless steel CF8M
|
|
ball
|
CF8M
|
CF8
|
bonnet
|
ASTM A351 CF8M/CF8
|
stem
|
stainless steel CF8M
|
|
seat
|
RTFE
|
stem
|
SS316
|
bonnet
|
stainless steel CF8M
|
|
|
stem seal
|
RTFE
|
gasket
|
R-PTFE
|
metal gasket
|
stainless steel SS316
|
|
|
Packing sleeve
|
SS202
|
spring
|
SS304
|
packing sleeve
|
stainless steel SS316
|
|
|
Elastic washer
|
SS202
|
packing
|
R-PTFE
|
metal gasket
|
stainless steel SS316
|
|
|
Nut
|
SS202
|
hex cap
|
SS316
|
elastic washer
|
stainless steel SS316
|
|
|
Bolt
|
SS304
|
handwheel
|
Aluminum alloy
|
nut
|
stainless steel SS316
|
|
