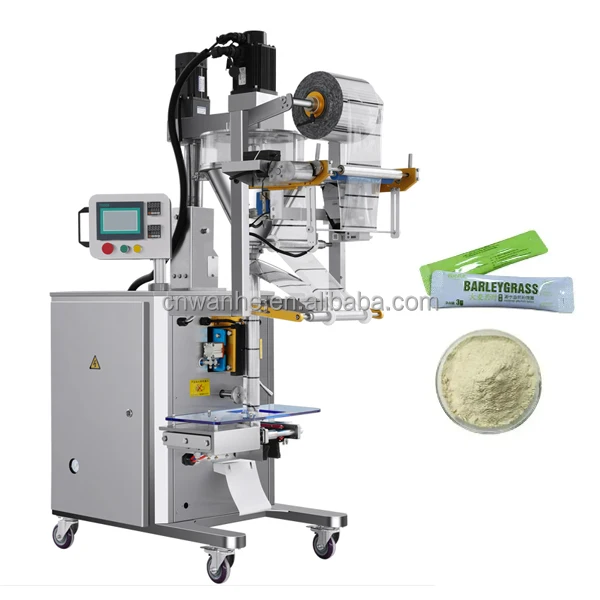

SJIII-F SERIES AUTOMATIC POWDER PACKING MACHINE ADOPT THE ENCODER TO CONTROL THE LENGTH OF THE BAG, EQUIPPED THE PHOTOCELL SENSOR, THE MACHINE IS CONTROLLED TO FILL MATERIAL BY PLC, AND EQUIPPED SEALING TEMPERATURE MAKING, COUNTING, FILLING, SEALING, CODING AND CUTTING, THE MACHINE IS SUITABLE FOR COUNTING PACKING OF 100-300ML POWDER. THE MATERIAL WHICH CAN BE SEALED OF PACKING BAG.
Machine detail
PRODUCT SPECIFICATIONS
|
Model
|
SJIII-F50
|
SJIII-F100
|
SJIII-F300
|
|
Capacity(bag/min)
|
35-60
|
28-60
|
20-50
|
|
Packing range(ml)
|
3-50
|
10-100
|
50-500
|
|
Power(kw/V)
|
1.8/220
|
1.8/220
|
2.0/220
|
|
Length of bag(mm)
|
Max150
|
Max 180
|
Max 300
|
|
Width of bag(mm)
|
Max100
|
Max140
|
Max190
|
|
Dimension(mm)
|
760*980*1700
|
760*980*1700
|
900*1110*2100
|
|
Weight(kg)
|
350
|
380
|
500
|
