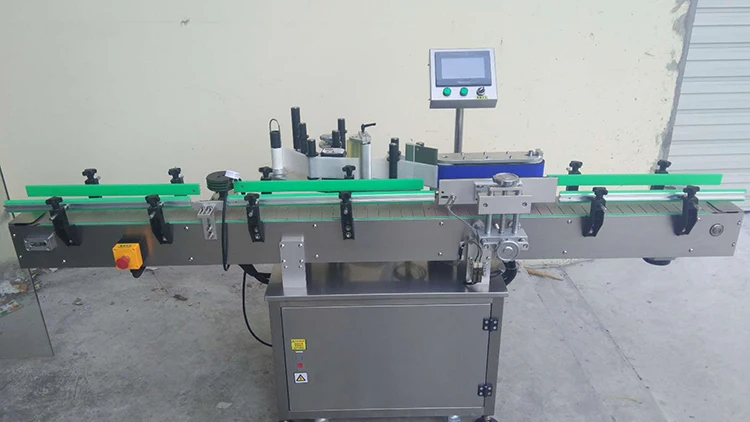

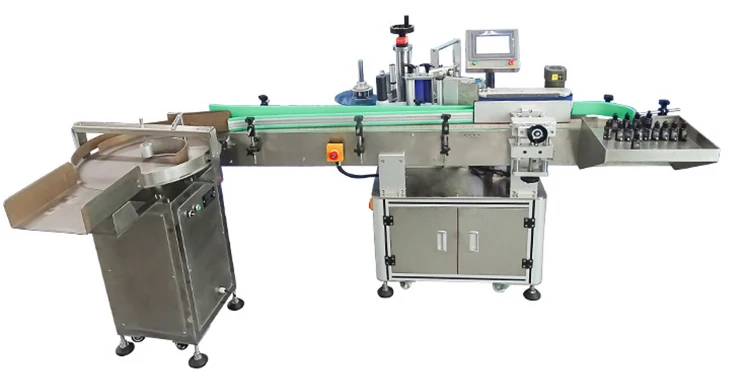

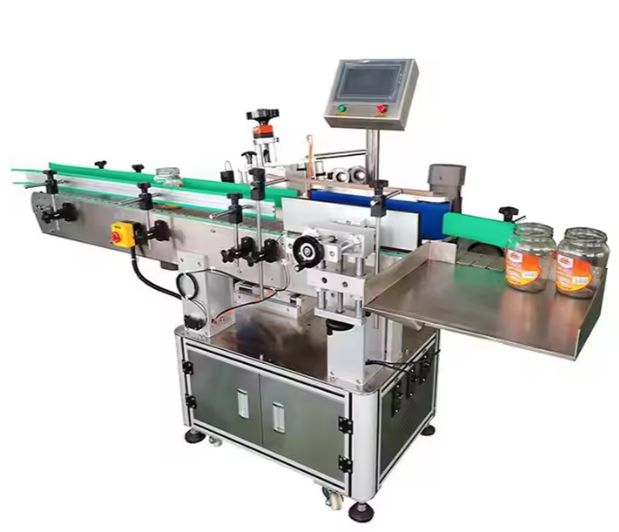

Automatic Round Bottle Labeling Machine
a.Wide range of application, can meet the full-circle labeling or half-circle labeling of round bottles, easy to switch labels between bottles;
b.Labeling speed:20-40 pieces/minuter,which is adjustable,improve the working efficiency greatly;
c.With automatic bottle sorting function, can be produced by single machine, or can be connected to production line;

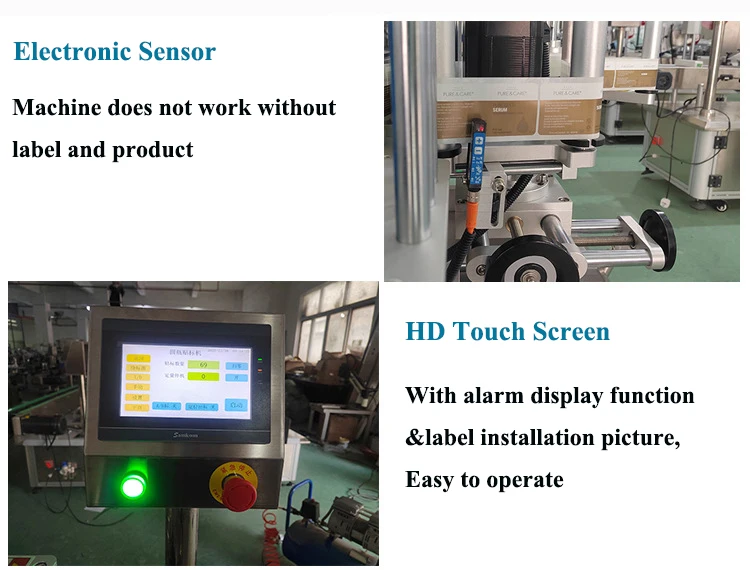

d.Intelligent control by automatic photoelectric tracking, with functions of no labels no sticking, automatic calibration without label and automatic detection of labels to prevent missing labels and waste of labels;
e.High stability, advanced electrical control system, supporting equipment 7*24 hours operation;
f.Can be equipped with code printer,make labeling and printing time and batch at one machine.
Product Parameters
|
Bottle Diameter |
15mm-100mm |
|
Bottle Height |
15mm-300mm |
|
Label Length |
10mm-300mm |
|
Label Bottom Paper Width |
10mm -130mm |
|
Labeling Accuracy |
±1mm |
|
Labeling Speed |
60-100 pieces/minute |
|
Inner Diameter of Label Roll |
Φ76mm |
|
Outer Diameter of Label Roll |
Φ280mm |
| Machine Size | About 2100mm×1000mm×1350mm |
| Machine Weight |
245kgs |
| Voltage |
110-230V |
