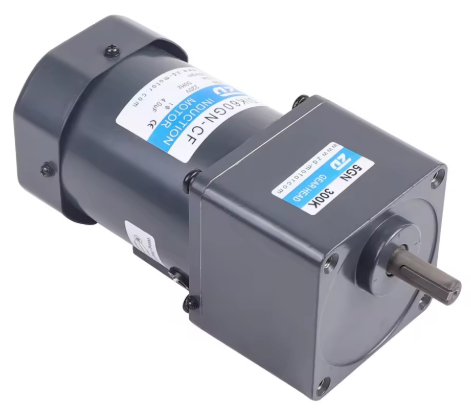

| Model •Type Upper:Pinion Shaft Below:Round Shaft |
Output power W |
Voltage V |
Frequency Hz |
Current A |
Starting Torque mN.m |
Rated Torque mN.m |
Rated Speed r/min |
Capacitor μF |
|
| Lead Wire Type Dimensions ① |
Terminal Box Type Dimensions ② |
||||||||
| 5IK120GU-AF (5IK120A-AF) |
5IK120GU-AFT (5IK120A-AFT) |
120 | 1ph 100 | 50 | 2.1 | 600 | 930 | 1250 | 30.0 |
| 60 | 2.5 | 750 | 1550 | ||||||
| 5IK120GU-EF (5IK120A-EF ) |
5IK120GU-EFT (5IK120A-EFT) |
120 | 1ph 110 | 60 | 1.65 | 600 | 750 | 1550 | 25.0 |
| 1ph 120 | 1.80 | ||||||||
| 5IK120GU-CF (5IK120A-CF) |
5IK120GU-CFT (5IK120A-CFT) |
120 | 1ph 220 | 50 | 1.0 | 650 | 930 | 1250 | 7.0 |
| 1ph 230 | 0.95 | ||||||||
| 5IK120GU-HF (5IK120A-HF) |
5IK120GU-HFT (5IK120A-HFT) |
120 | 1ph 220 | 60 | 1.0 | 600 | 750 | 1550 | |
| 1ph 230 | 0.95 | ||||||||
| 5IK120GU-SF (5IK120A-SF) |
5IK120GU-SFT (5IK120A-SFT) |
120 | 3ph 220 | 50 | 0.70 | 1850 | 930 | 1250 | – |
| 60 | 0.60 | 1600 | 750 | 1550 | |||||
| 5IK120GU-S3F (5IK120A-S3F) | 5IK120GU-S3FT (5IK120A-S3FT) | 120 | 3ph 380 | 50 | 0.40 | 1850 | 930 | 1250 | – |
| 60 | 0.35 | 1600 | 750 | 1550 | |||||
●When the motor is approved under various safety standards,the model name on the nameplate is the approved model name.
●Note:”-A”it means the voltage 110v,the assembly capacitor vaule it is according the label.
Mounting screws are included with gearhead.
●Lead Wiring Type①
Weight:Motor:3.4kg Gearhead:1.5kg

| Motor Model | Gearhead Model | Gear Ratio | L1 |
|
5IK120GU-AF
5IK120GU-EF 5IK120GU-CF 5IK120GU-HF 5IK120GU-SF 5IK120GU-S3F
|
5GU□KB | 3~200 | 65.5 |
●Enter the gear ratio in the box(□)within the model name
●Terminal Box Type②
Weight:Motor:3.55kg Gearhead:1.5kg

●Use cable with a diameter of Φ6~Φ12mm
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|
5IK120GU-AF
5IK120GU-EF 5IK120GU-CF 5IK120GU-HF 5IK120GU-SF 5IK120GU-S3F
|
5GU□K | 3~200 | 65.5 |
●Enter the gear ratio in the box (□) within the model name
●Flange Mounting Reducer
Can be mounted on GU type gear shaft
5GU□K
Weight:1.5kg

●Key•Keyway(Accessory Of Gearhead)

●Shaft Section Of Round Shaft Type
Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

●Decimal Gearhead
Can be connected to GU pinion shaft type
5GU10XK
Weight:0.65kg

■Gear Motor-Torque Table
●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name.
●Enter the gear ratio in the box (□) within the model name.
●The speed is calculated by diving the motor’s synchronous speed (50Hz:1500r/min、60Hz:1800r/min) by the gear ratio. The actual speed is 2%-20% less than the displayed value,depending on the size of the load.
●To reduce the speed beyond the gear ratio in the table,attach a mid-gearbox (gear ratio:10) between the gearhead and motor. In that case, the permissible torque is 20N.m.
■Allowable Torque Unit:Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | ||
| Speed r/min |
50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 42 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | ||
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |||
| 5IK120GU-AF□ | 5GU□RC 5GU□RT |
Allowable Torque | 50Hz | 1.70 | 2.05 | 2.84 | 3.41 | 4.73 | 5.68 | 7.89 | 9.47 | 11.4 | 15.8 | 18.9 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
| 5IK120GU-EF□ | |||||||||||||||||||||||
| 5IK120GU-CF□ | |||||||||||||||||||||||
| 5IK120GU-HF□ | 17.4 | 20.9 | 29.0 | 34.8 | 48.3 | 58.0 | 80.5 | 96.6 | 116 | 161 | 193 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |||
| 5IK120GU-SF□ | 60Hz | 1.37 | 1.65 | 2.29 | 2.75 | 3.82 | 4.58 | 6.36 | 7.64 | 9.16 | 12.7 | 15.3 | 16.5 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | ||
| 5IK120GU-S3F□ | 14.0 | 16.8 | 23.4 | 28.0 | 39.0 | 46.7 | 64.9 | 77.9 | 93.5 | 130 | 156 | 168 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |||
■Induction Type Drawing
